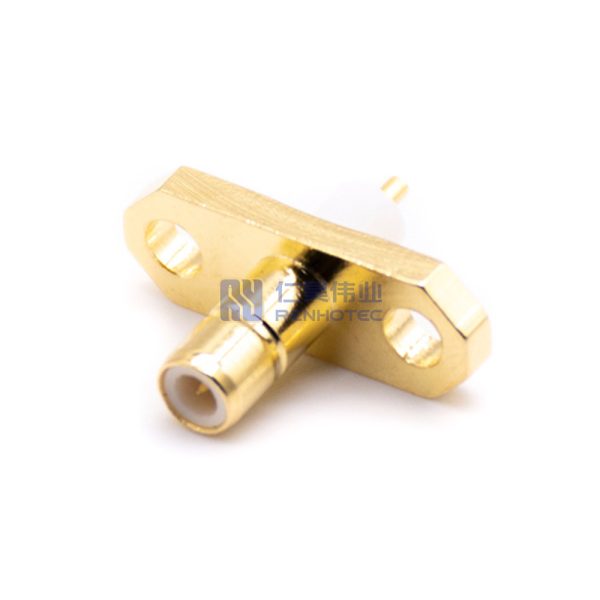

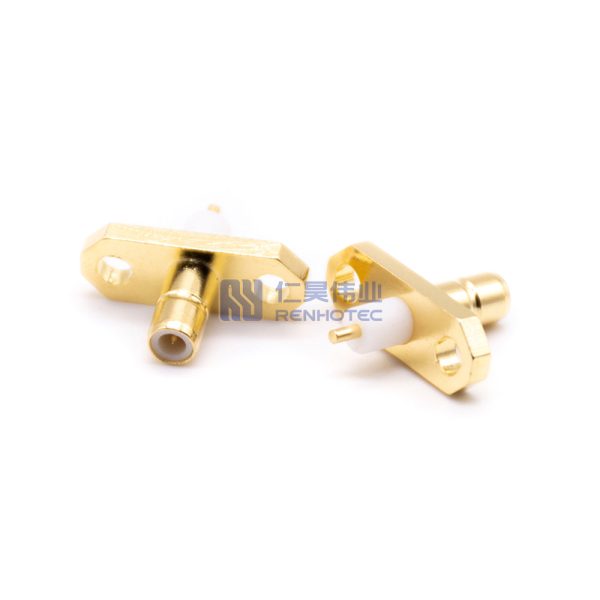

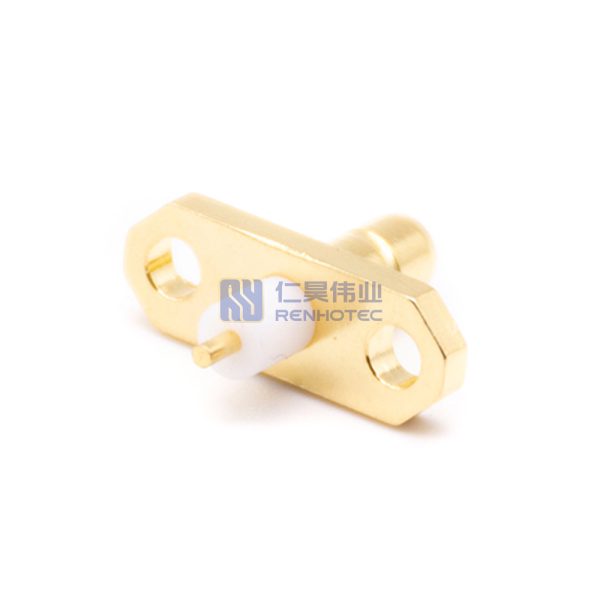

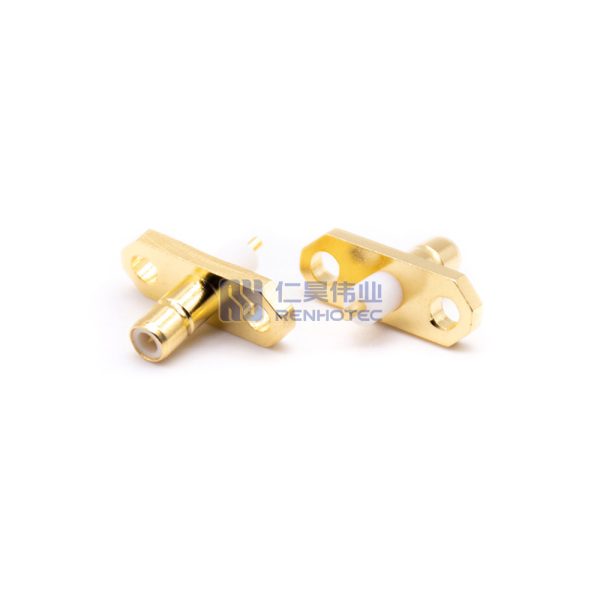

SMB Connector Straight Jack Male Pin Panel Mount Two Flange 50 Ohm – RHT-626-0222

  • 50 Ohm SMB straight jack male pin panel mount connector with two flanges
  • Provides secure, stable RF signal connections for various applications
  • Ideal for panel mounting in communication, networking, and wireless devices
  • Durable construction ensures long-lasting performance in high-frequency environments
  • Compatible with a range of coaxial cables for versatile usage

The SMB (Sub-Miniature version B) connector is a quick-lock mating miniature connector that operates up to 4 GHz in frequency. The SMB interface features a snap-on coupling mechanism and is available in 50-ohm configurations.

SMB connectors are smaller than SMA connectors. However, these connectors are not ideal for harsh environmental conditions, as they are not robust as SMA connectors.

Available in 50 Ohm and 75 Ohm configurations, the SMB connectors are built in accordance with MIL-C-39012, IEC 60169-10, and CECC 22130 interface standards.

Interface

Application Scenarios
