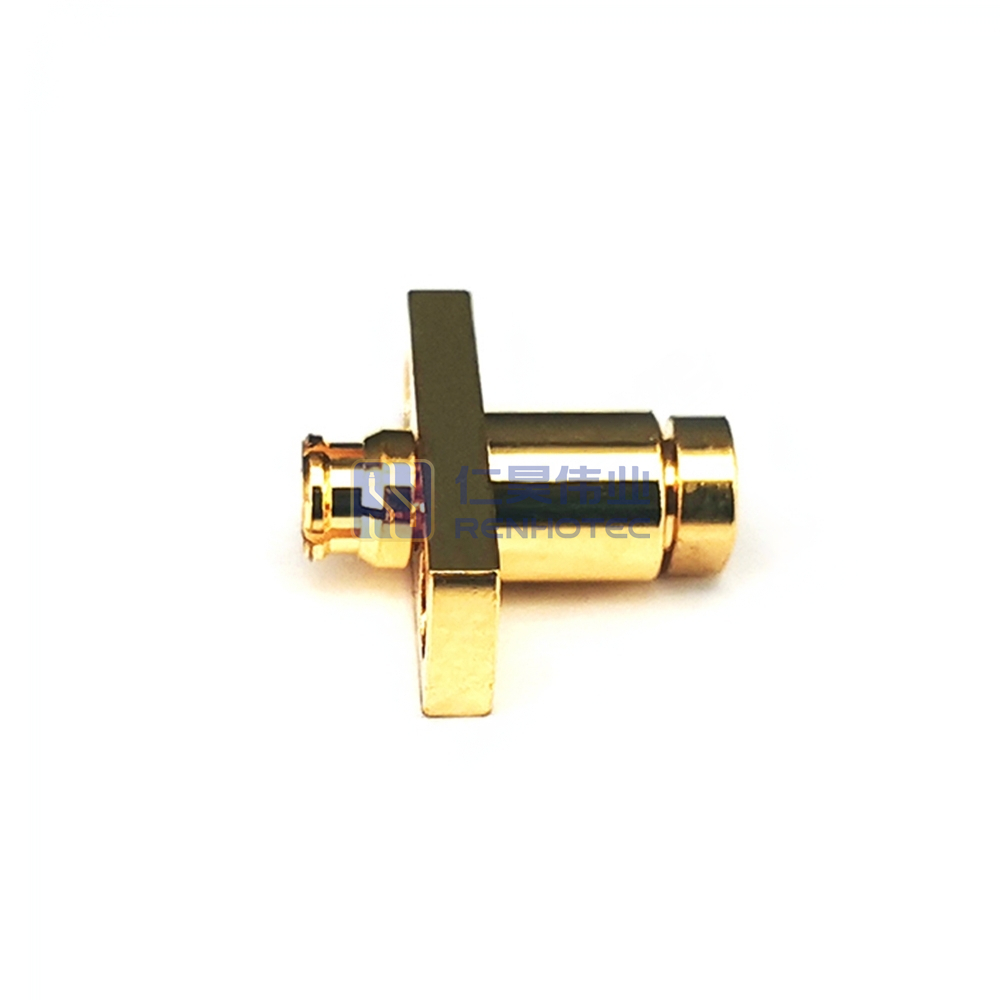

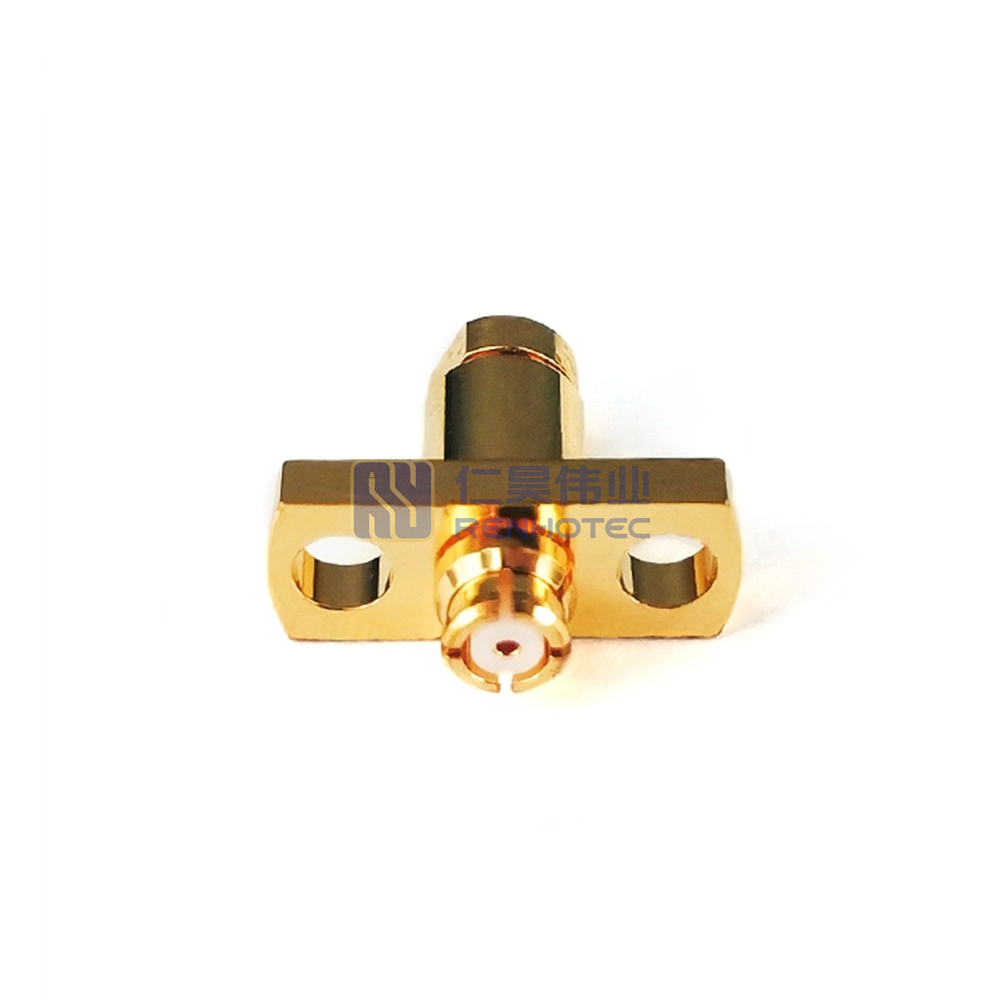

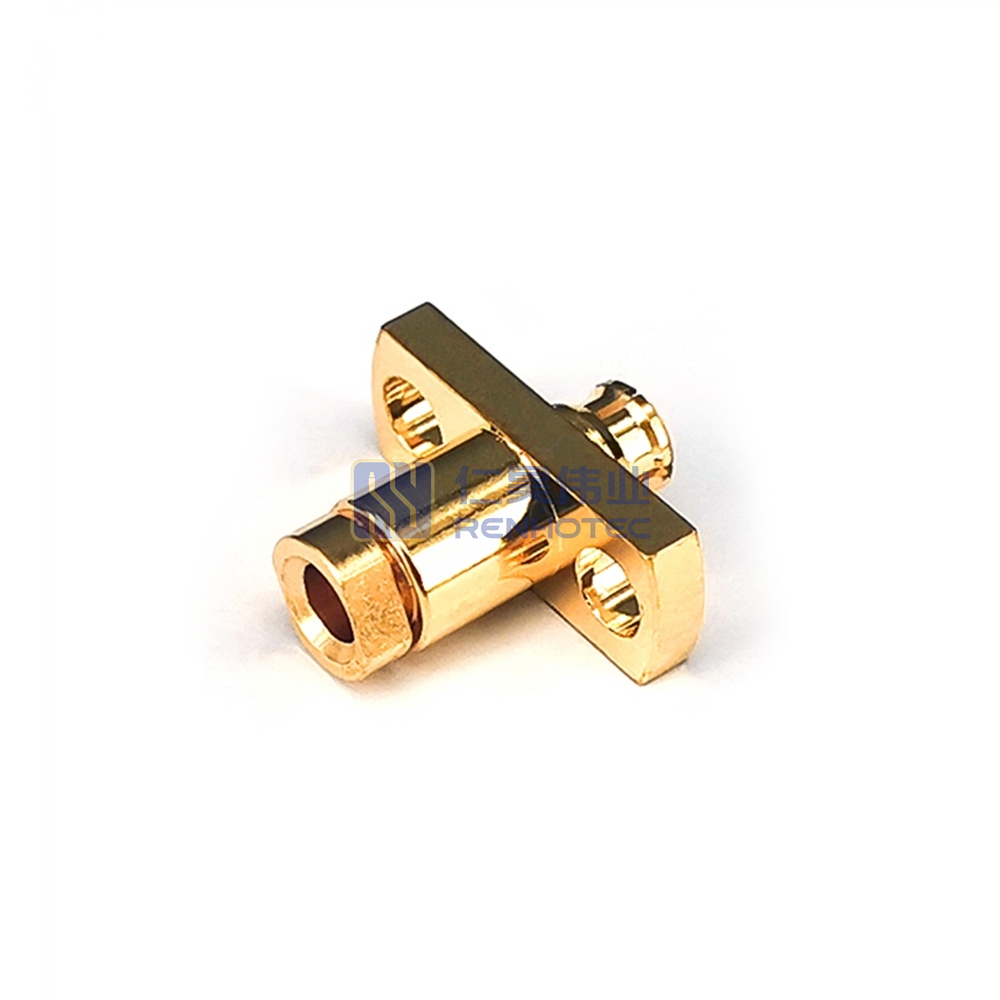

SMP Female Connector Solder 50 Ohm DC-40GHz for RG402 RG405
High-quality SMP female connector designed for RG402 and RG405 cables, featuring a 50 Ohm impedance and a frequency range of DC-40GHz. Ideal for various RF applications.
The SMP interface, similar in size to MMCX connectors, supports frequencies from DC to 40 GHz. Frequently employed in compact high-frequency coaxial modules, this interface comes in push-on and snap-on mating variations.
Features
- Full detent, limited detent, smooth bore or catcher’s mitt
- Standard surface mount (versus swept contact) for best performance
- 50 ohm impedance
- Performance to 40 GHz
- Cable-to-board or board-to-board applications
- Push-on interface for quick installation, or blind mate
SMP Connector Types
Cable Mount
Panel Mount
SMP Adaptor
Applications
- Antennas
- Broadband
- Instrumentation
- Medical
- Quantum Computing
Our Advantages
Physical factory
Having a professional production team, selfproduced and self sold
Quality assurance
Through strict qualitycontrol, ensure quality
After sales system
Actively follow up andpromptly address anyissues
After sales system
Actively follow up andpromptly address anyissues
Production Process
1. Put forward demand
2. Sketch design
3. Production equipment
4. Production measurement
5. Product assembly
6. Quality test
7. Product packaging
8. Product packag box
9. Deliver goods
Product Specification
RF Series | SMP Type |
||
---|---|---|---|
Connector Type | Jack |
||
Contact Type | Female Pin |
||
Orientation | Straight |
||
Shield Termination | Solder |
||
Mounting Type | Cable Mount |
||
Suitable Cable | RG402 RG405 |
||
Impedance | 50 ohm |
||
Frequency Range | DC-40GHz |
||
Shell Material | Beryllium Bronze |
||
Shell Finish | Gold Plated |
||
Insulator Material | PTFE |
||
Contact Material | Beryllium Bronze |
||
Contact Finish | Gold |
||
RF Series | SMP Type |
Connector Type | Jack |
Contact Type | Female Pin |
Orientation | Straight |
Shield Termination | Solder |
Mounting Type | Cable Mount |
Suitable Cable | RG402 RG405 |
Impedance | 50 ohm |
Frequency Range | DC-40GHz |
Shell Material | Beryllium Bronze |
Shell Finish | Gold Plated |
Insulator Material | PTFE |
Contact Material | Beryllium Bronze |
Contact Finish | Gold |
RF Series | SMP Type |
---|---|
Connector Type | Jack |
Contact Type | Female Pin |
Orientation | Straight |
Shield Termination | Solder |
Mounting Type | Cable Mount |
Suitable Cable | RG402 RG405 |
Impedance | 50 ohm |
Frequency Range | DC-40GHz |
Shell Material | Beryllium Bronze |
Shell Finish | Gold Plated |
Insulator Material | PTFE |
Contact Material | Beryllium Bronze |
Contact Finish | Gold |
High frequency connectors are precision connectors used for test and measurement or for sensitive low loss, phase stable, high frequency microwave applications up to 67 GHz. They are made of high grade materials in order to allow for longer life cycle and higher durability.
1.0mm, 1.35mm, 1.85mm, 2.4mm, 2.92mm, 3.5mm, BMA
SMP(GPO), SMPS (G3PO), mini SMP(GPPO), SMPM
Also we could provide high frequency adapters and cable assemblies.
It offers in both push-on and snap-on mating styles.
The available detent systems, full,limited,and smooth bore, provide respective levels of engagement/disengagement forces.
Of course, and we had customized many different types high frequency connectors for our customers based on original brand like Amphenol/TE/Radiall. Our state-of-the-art facilities adhere to the highest quality standards, ensuring that each replacement part meets or exceeds the specifications of the original component. Additionally, our skilled technicians meticulously oversee the production process to guarantee precision and reliability.
