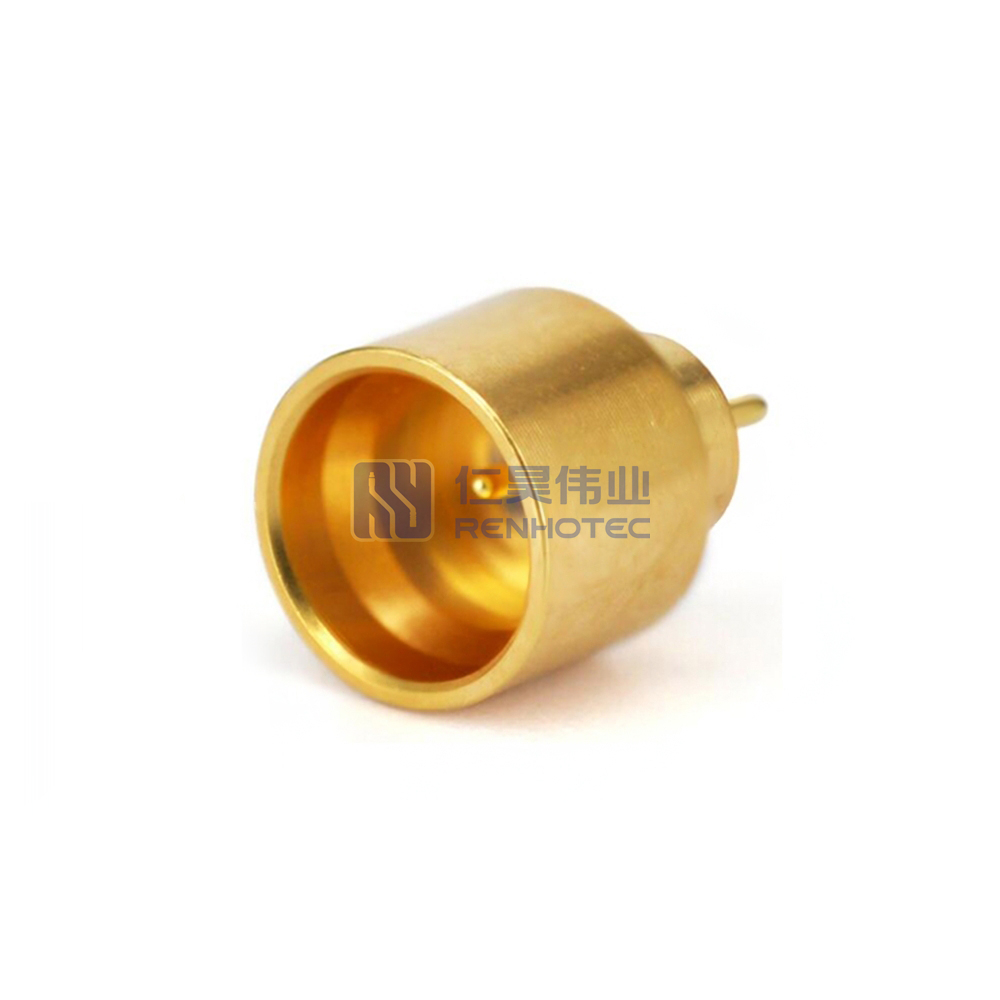

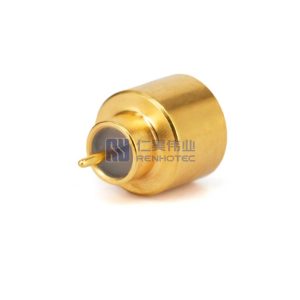

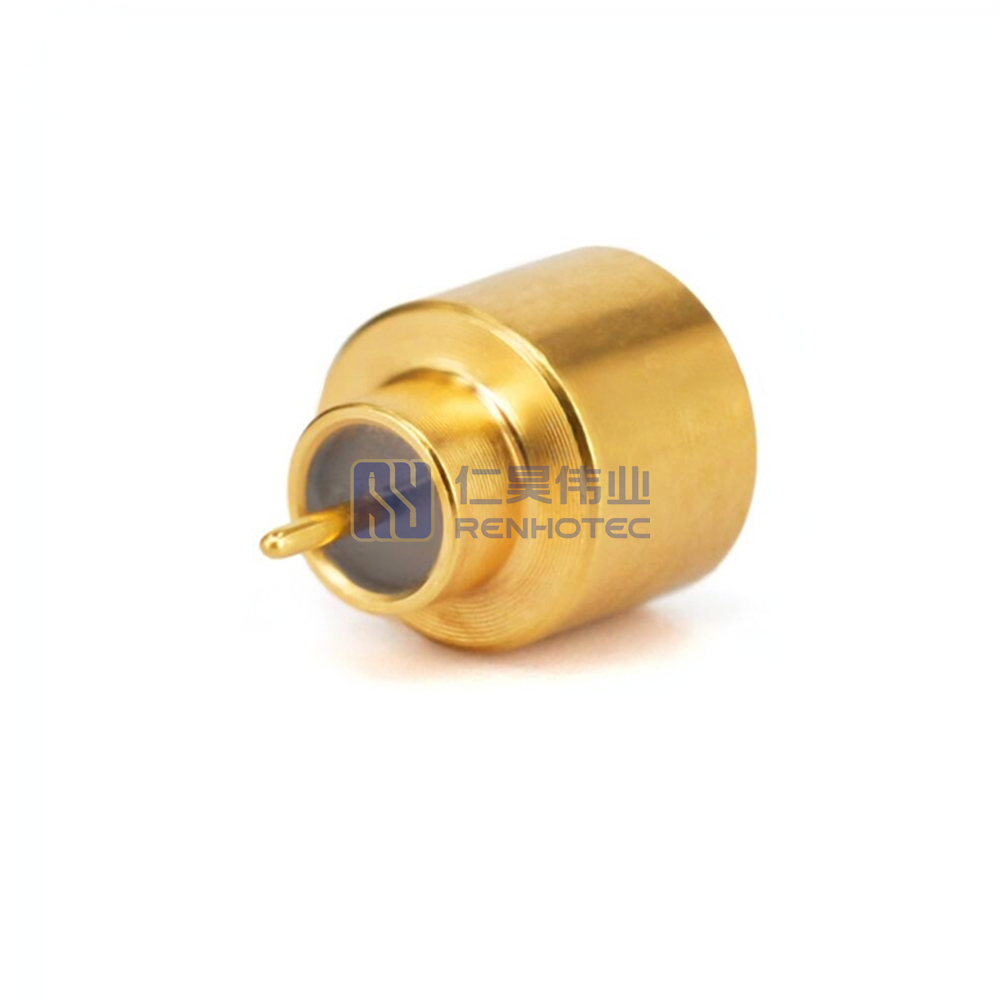

SMP Male Connector Solder Panel Mount 50 Ohm DC-40GHz

High-quality SMP male connector with a solder panel mount designed for reliable RF connections. Features 50 Ohm impedance and a wide frequency range of DC-40GHz.

The SMP interface, similar in size to MMCX connectors, supports frequencies from DC to 40 GHz. Frequently employed in compact high-frequency coaxial modules, this interface comes in push-on and snap-on mating variations.

Features

  • Full detent, limited detent, smooth bore or catcher’s mitt
  • Standard surface mount (versus swept contact) for best performance
  • 50 ohm impedance
  • Performance to 40 GHz
  • Cable-to-board or board-to-board applications
  • Push-on interface for quick installation, or blind mate

SMP Connector Types

Cable Mount

Panel Mount

SMP Adaptor

Applications

  • Antennas
  • Broadband
  • Instrumentation
  • Medical
  • Quantum Computing

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

After sales system

Actively follow up andpromptly address anyissues

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

RF Series

SMP Type
Connector Type

Plug
Contact Type

Male Pin
Orientation

Straight
Shield Termination

Solder
Mounting Type

Panel Mount
Mounting Feature

Through Hole
Impedance

50 ohm
Frequency Range

DC-40GHz
Shell Material

Brass
Shell Finish

Gold Plated
Insulator Material

PTFE
Contact Material

Brass
Contact Finish

Gold
RF Series

SMP Type

 Connector Type

Plug
Contact Type

Male Pin

 Orientation

Straight
Shield Termination

Solder

 Mounting Type

Panel Mount
Mounting Feature

Through Hole

 Impedance

50 ohm
Frequency Range

DC-40GHz

 Shell Material

Brass
Shell Finish

Gold Plated

 Insulator Material

PTFE
Contact Material

Brass

 Contact Finish

Gold
RF Series

SMP Type
Connector Type

Plug
Contact Type

Male Pin
Orientation

Straight
Shield Termination

Solder
Mounting Type

Panel Mount
Mounting Feature

Through Hole
Impedance

50 ohm
Frequency Range

DC-40GHz
Shell Material

Brass
Shell Finish

Gold Plated
Insulator Material

PTFE
Contact Material

Brass
Contact Finish

Gold

High frequency connectors are precision connectors used for test and measurement or for sensitive low loss, phase stable, high frequency microwave applications up to 67 GHz. They are made of high grade materials in order to allow for longer life cycle and higher durability.

1.0mm, 1.35mm, 1.85mm, 2.4mm, 2.92mm, 3.5mm, BMA

SMP(GPO), SMPS (G3PO), mini SMP(GPPO), SMPM

Also we could provide high frequency adapters and cable assemblies.

It offers in both push-on and snap-on mating styles.

The available detent systems, full,limited,and smooth bore, provide respective levels of engagement/disengagement forces.

Of course, and we had customized many different types high frequency connectors for our customers based on original brand like Amphenol/TE/Radiall. Our state-of-the-art facilities adhere to the highest quality standards, ensuring that each replacement part meets or exceeds the specifications of the original component. Additionally, our skilled technicians meticulously oversee the production process to guarantee precision and reliability.
