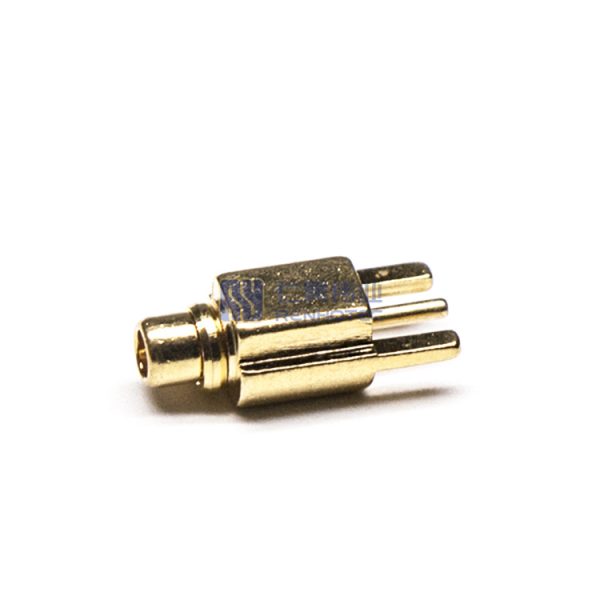

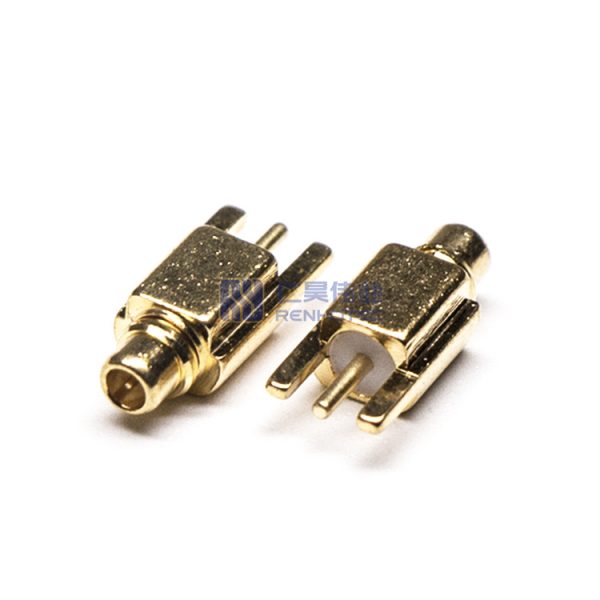

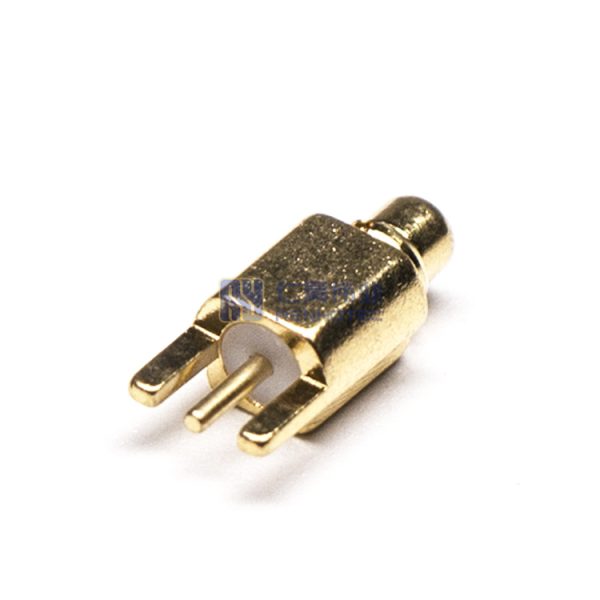

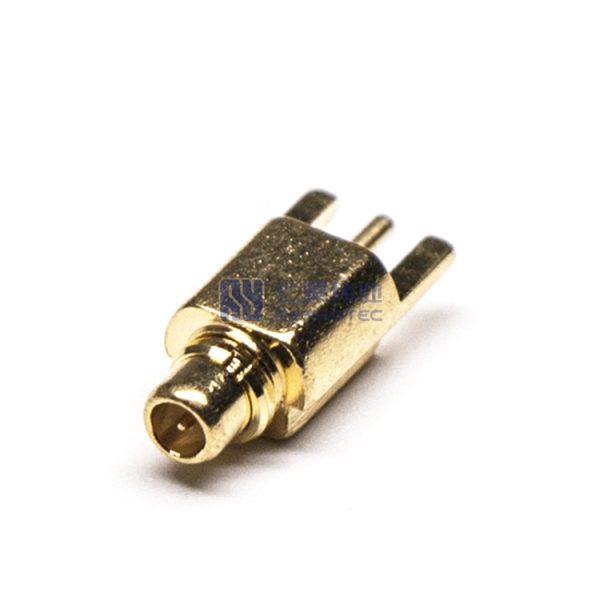

SMT Type MMCX Connector Male Connector Panel Mount 50ohm – RHT-631-1004

High-quality SMT type MMCX male connector designed for panel mounting. Features a 50ohm rating for optimal signal transmission. Compact and reliable design for various RF applications.

MCX / MMCX (Micro-Miniature Coaxial) connector are developed in Europe during the 1980s to 1990s, broadband capability of DC to 6 GHz and secure, fast and easy snap-on/snap-off coupling. Conforms to the European CECC 22000 specification.With small size, less weight, compact structure and easy fit, they are widely used in small sized communication equipment.

Broadband performance with low reflection

Quick connect/disconnect snap-on mating reduces installation time

Available in straight and right angle plugs and printed circuit board connectors

High-quality solution at a low cost

Complete Variety

MCX Connector

Crimp Type

Solder Type

Through Hole

SMT Type

Flange Mount

Edge Type

MMCX Connector

Crimp Type

Solder Type

R/A Solder Type

Through Hole

R/A Through Hole

Surface Type

Product Application

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

After sales system

Actively follow up andpromptly address anyissues

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

RF Series

MMCX Type
Connector Type

Plug
Orientation

Straight
Contact Type

Male Pin
Contact Termination Style

Solder
Shield Termination

Solder
Mounting Type

Panel Mount
Mounting Feature

SMT
Fastening Type

Snap On
Number of Ports

1
Impedance

50 ohm
Frequency - Max

6GHz
Shell Material

Copper Alloy
Shell Finish

Gold Plated
Insulator Material

PTFE
Contact Material

Brass
Contact Finish

Gold Plated
Rated Voltage

500 Volts RMS Max Continuous
Dielectric Withstanding Voltage

1000 VRMS Max
Insultation Resistance

500MΩ Min
Center Contact Resistance

5 MΩ Min
Outer Contact Resistance

1 MΩ Min
Temperature Range

-65°C to +165°C
Mating Durability

≥ 500 Cycles
VSWR

≤1.15 (DC to 4 GHz), ≤1.40 (4 to 6 GHz)
Vibration

MIL-STD-202 Meth. 204
Corrosion Resistance

MIL-STD-202 Meth. 101
RF Series

MMCX Type

 Connector Type

Plug
Orientation

Straight

 Contact Type

Male Pin
Contact Termination Style

Solder

 Shield Termination

Solder
Mounting Type

Panel Mount

 Mounting Feature

SMT
Fastening Type

Snap On

 Number of Ports

1
Impedance

50 ohm

 Frequency - Max

6GHz
Shell Material

Copper Alloy

 Shell Finish

Gold Plated
Insulator Material

PTFE

 Contact Material

Brass
Contact Finish

Gold Plated

 Rated Voltage

500 Volts RMS Max Continuous
Dielectric Withstanding Voltage

1000 VRMS Max

 Insultation Resistance

500MΩ Min
Center Contact Resistance

5 MΩ Min

 Outer Contact Resistance

1 MΩ Min
Temperature Range

-65°C to +165°C

 Mating Durability

≥ 500 Cycles
VSWR

≤1.15 (DC to 4 GHz), ≤1.40 (4 to 6 GHz)

 Vibration

MIL-STD-202 Meth. 204
Corrosion Resistance

MIL-STD-202 Meth. 101
RF Series

MMCX Type
Connector Type

Plug
Orientation

Straight
Contact Type

Male Pin
Contact Termination Style

Solder
Shield Termination

Solder
Mounting Type

Panel Mount
Mounting Feature

SMT
Fastening Type

Snap On
Number of Ports

1
Impedance

50 ohm
Frequency - Max

6GHz
Shell Material

Copper Alloy
Shell Finish

Gold Plated
Insulator Material

PTFE
Contact Material

Brass
Contact Finish

Gold Plated
Rated Voltage

500 Volts RMS Max Continuous
Dielectric Withstanding Voltage

1000 VRMS Max
Insultation Resistance

500MΩ Min
Center Contact Resistance

5 MΩ Min
Outer Contact Resistance

1 MΩ Min
Temperature Range

-65°C to +165°C
Mating Durability

≥ 500 Cycles
VSWR

≤1.15 (DC to 4 GHz), ≤1.40 (4 to 6 GHz)
Vibration

MIL-STD-202 Meth. 204
Corrosion Resistance

MIL-STD-202 Meth. 101
Drawing for SMT Type MMCX Connector Male Connector Panel Mount 50ohmDownload
