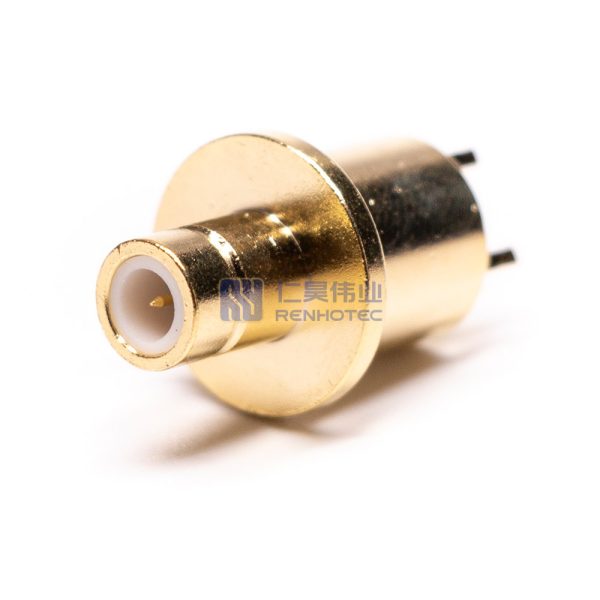

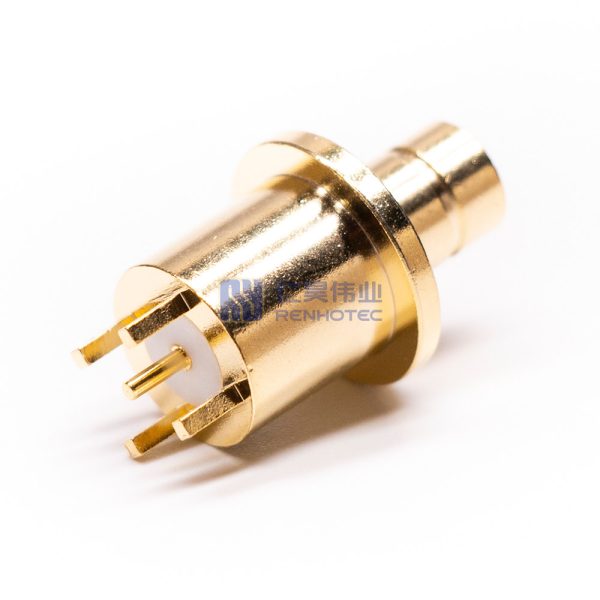

SMZ Connector Straight Jack Male Pin Panel Mount Through Hole 75 Ohm – RHT-700-0008
- A snap-on series
- Larger than the SMB series
- Provide a well-matched system impedance for critical telecommunication and CATV applications
SMZ 75 Ohm connectors are designed to provide a well-matched system impedance for critical telecommunication and CATV applications. The SMZ is a snap-on series with an interface similar to, but larger than the SMB series. These connectors are rated to 2 GHz but have been successfully used above 4 GHz.
Application Scenarios
Product Specification
RF Series | SMZ Type |
||
---|---|---|---|
Connector Type | Jack |
||
Orientation | Straight |
||
Contact Type | Male Pin |
||
Contact Termination Style | Solder |
||
Mounting Type | Panel Mount |
||
Mounting Feature | Through Hole |
||
Fastening Type | Snap On |
||
Number of Ports | 1 |
||
Impedance | 75 ohm |
||
Shell Material | Copper Alloy |
||
Shell Finish | Gold Plated |
||
Insulator Material | Teflon White |
||
Contact Material | Brass |
||
Contact Finish | Gold Plated |
||
Frequency Range | DC-3 GHz for 75 ohm |
||
Rated Voltage | 500 V rms. |
||
Dielectric Withstanding Voltage | 1500 V rms |
||
Insultation Resistance | 5GW |
||
Center Contact Resistance | 3mW. |
||
Outer Contact Resistance | 2.5mW. |
||
Temperature Range | -65°C to +165°C |
||
RF Series | SMZ Type |
Connector Type | Jack |
Orientation | Straight |
Contact Type | Male Pin |
Contact Termination Style | Solder |
Mounting Type | Panel Mount |
Mounting Feature | Through Hole |
Fastening Type | Snap On |
Number of Ports | 1 |
Impedance | 75 ohm |
Shell Material | Copper Alloy |
Shell Finish | Gold Plated |
Insulator Material | Teflon White |
Contact Material | Brass |
Contact Finish | Gold Plated |
Frequency Range | DC-3 GHz for 75 ohm |
Rated Voltage | 500 V rms. |
Dielectric Withstanding Voltage | 1500 V rms |
Insultation Resistance | 5GW |
Center Contact Resistance | 3mW. |
Outer Contact Resistance | 2.5mW. |
Temperature Range | -65°C to +165°C |
RF Series | SMZ Type |
---|---|
Connector Type | Jack |
Orientation | Straight |
Contact Type | Male Pin |
Contact Termination Style | Solder |
Mounting Type | Panel Mount |
Mounting Feature | Through Hole |
Fastening Type | Snap On |
Number of Ports | 1 |
Impedance | 75 ohm |
Shell Material | Copper Alloy |
Shell Finish | Gold Plated |
Insulator Material | Teflon White |
Contact Material | Brass |
Contact Finish | Gold Plated |
Frequency Range | DC-3 GHz for 75 ohm |
Rated Voltage | 500 V rms. |
Dielectric Withstanding Voltage | 1500 V rms |
Insultation Resistance | 5GW |
Center Contact Resistance | 3mW. |
Outer Contact Resistance | 2.5mW. |
Temperature Range | -65°C to +165°C |
