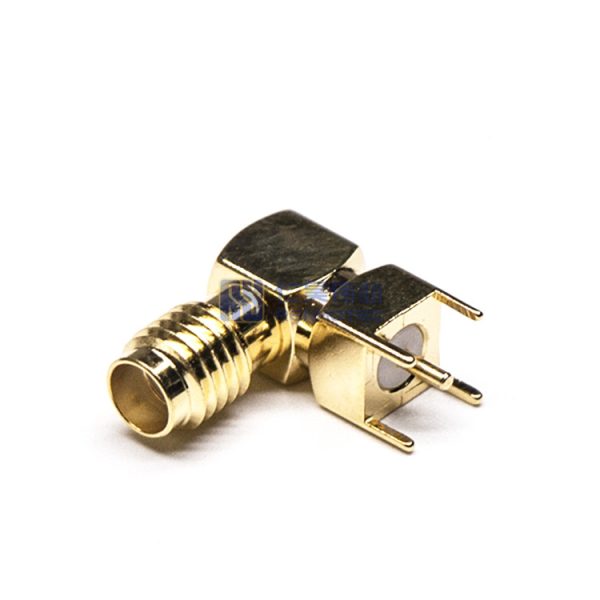

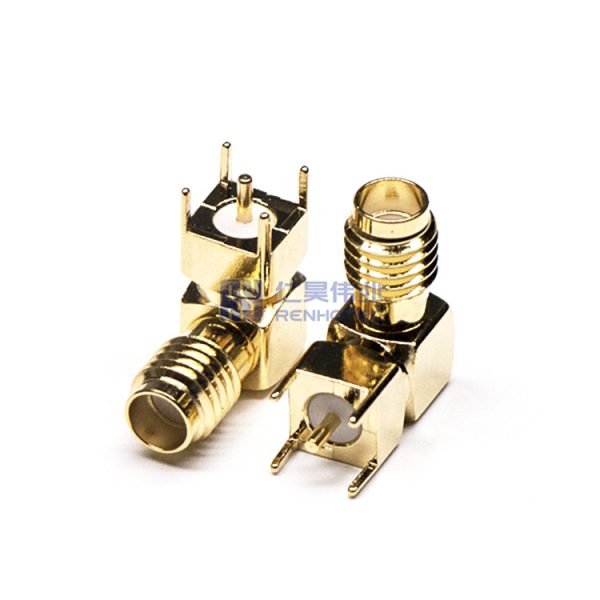

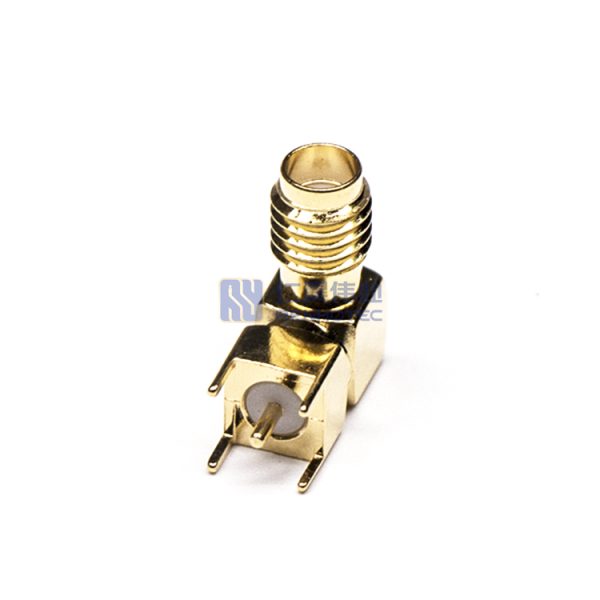

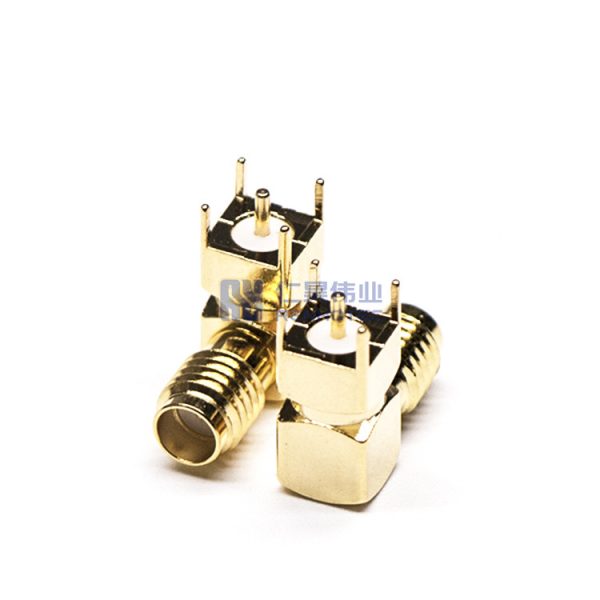

SSMA Connector Right Angle Jack Solder Panel Mount Through Hole 50ohm – RHT-624-0005

High-quality SSMA connector featuring a right-angle jack design for easy soldering and panel mounting. With a 50ohm impedance, this connector ensures reliable signal transmission in various applications.

SSMA connector is a 50 Ohm nominal impedance RF connector that utilizes a 10–36 threaded coupling and is essentially a scaled-down version of the SMA. They are characterized by compactness, high-frequency bandwidth, and highly reliable mechanical performance. The male contact was designed to be the same size as the cable conductor so that it could be used as the mating pin for optimized VSWR. Common applications included telecommunications, RFID, antennas, test and measurement, and radar systems.

Drawing of SSMA Connector

Product Specification

RF Series

SSMA Type
Connector Type

Jack
Contact Type

Female Pin
Orientation

Right Angle
Contact Termination Style

Solder
Shield Termination

Solder
Mounting Type

Panel Mount
Mounting Feature

Through Hole
Fastening Type

Threaded
Impedance

50 ohm
Insulator Material

Teflon White
Shell Material

Copper Alloy
Shell Finish

Gold Plated
Contact Material

Phosphor Bronze
Contact Finish

Gold Plated
Frequency Range

0-6 GHz
Insultation Resistance

5000MΩ Min
Mating Durability

≥ 500 Cycles
Working Voltage

500 V rms
VSWR

1.5MAX
Temperature Range

-55°C to +155°C
RF Series

SSMA Type

 Connector Type

Jack
Contact Type

Female Pin

 Orientation

Right Angle
Contact Termination Style

Solder

 Shield Termination

Solder
Mounting Type

Panel Mount

 Mounting Feature

Through Hole
Fastening Type

Threaded

 Impedance

50 ohm
Insulator Material

Teflon White

 Shell Material

Copper Alloy
Shell Finish

Gold Plated

 Contact Material

Phosphor Bronze
Contact Finish

Gold Plated

 Frequency Range

0-6 GHz
Insultation Resistance

5000MΩ Min

 Mating Durability

≥ 500 Cycles
Working Voltage

500 V rms

 VSWR

1.5MAX
Temperature Range

-55°C to +155°C
RF Series

SSMA Type
Connector Type

Jack
Contact Type

Female Pin
Orientation

Right Angle
Contact Termination Style

Solder
Shield Termination

Solder
Mounting Type

Panel Mount
Mounting Feature

Through Hole
Fastening Type

Threaded
Impedance

50 ohm
Insulator Material

Teflon White
Shell Material

Copper Alloy
Shell Finish

Gold Plated
Contact Material

Phosphor Bronze
Contact Finish

Gold Plated
Frequency Range

0-6 GHz
Insultation Resistance

5000MΩ Min
Mating Durability

≥ 500 Cycles
Working Voltage

500 V rms
VSWR

1.5MAX
Temperature Range

-55°C to +155°C
