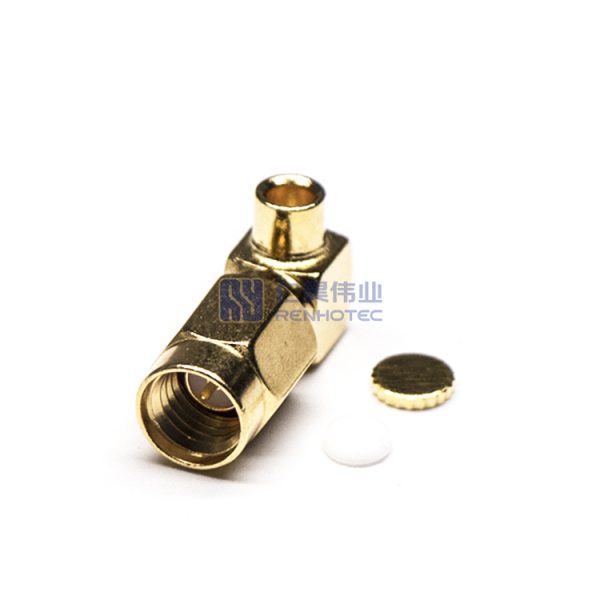

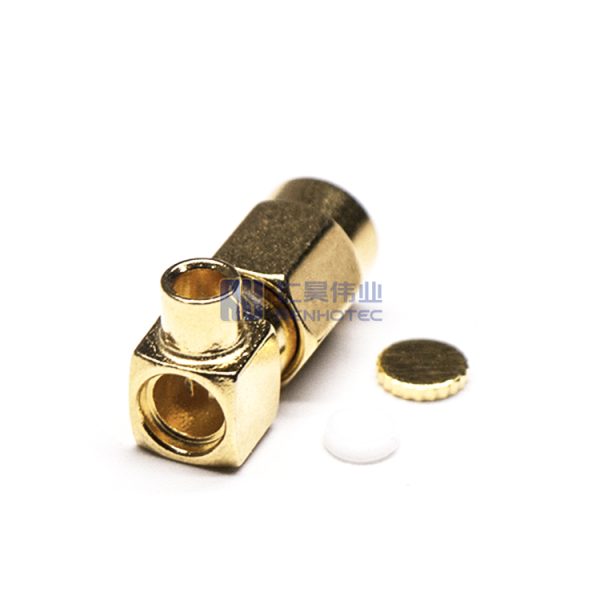

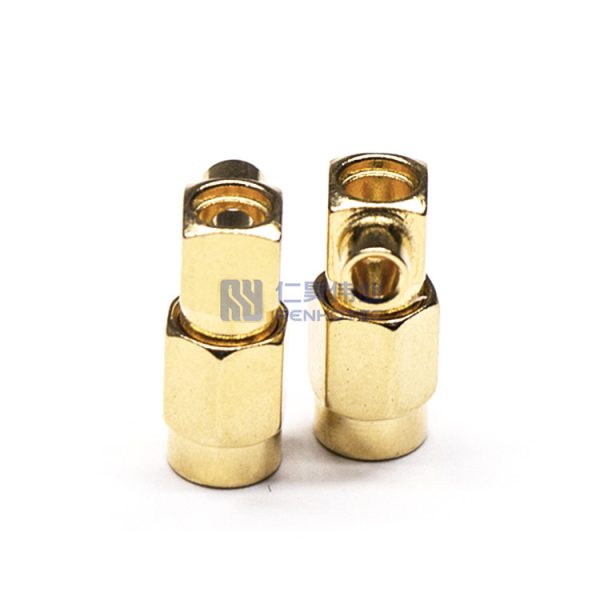

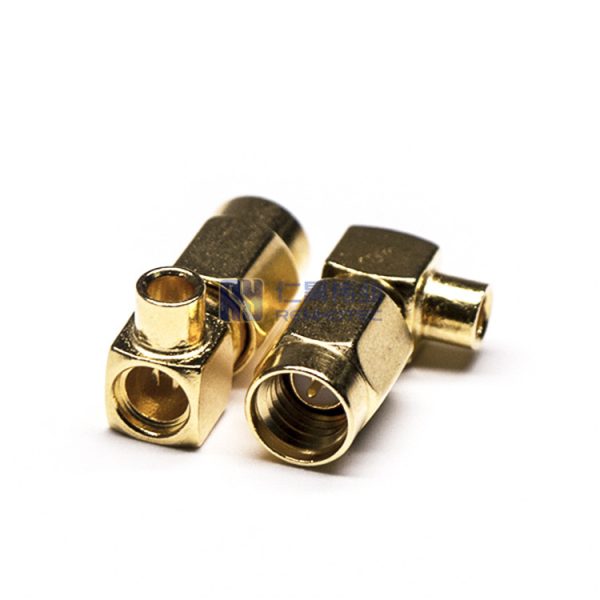

SSMA Connector Right Angle Male Crimp Cable Type 50ohm – RHT-624-0002

High-quality SSMA right angle male connector designed for secure crimp cable attachment in 50ohm applications. Ensures reliable signal transmission with a compact design. Perfect for various RF and telecommunications setups.

SSMA connector is a 50 Ohm nominal impedance RF connector that utilizes a 10–36 threaded coupling and is essentially a scaled-down version of the SMA. They are characterized by compactness, high-frequency bandwidth, and highly reliable mechanical performance. The male contact was designed to be the same size as the cable conductor so that it could be used as the mating pin for optimized VSWR. Common applications included telecommunications, RFID, antennas, test and measurement, and radar systems.

Drawing of SSMA Connector

Product Specification

RF Series

SSMA Type
Connector Type

Plug
Contact Type

Male Pin
Orientation

Right Angle
Contact Termination Style

Solder
Shield Termination

Solder
Mounting Type

Cable Mount
Fastening Type

Threaded
Impedance

50 ohm
Insulator Material

Teflon White
Shell Material

Copper Alloy
Shell Finish

Gold Plated
Contact Material

Phosphor Bronze
Contact Finish

Gold Plated
Frequency Range

0-6 GHz
Insultation Resistance

5000MΩ Min
Mating Durability

≥ 500 Cycles
Working Voltage

500 V rms
VSWR

1.5MAX
Temperature Range

-55°C to +155°C
RF Series

SSMA Type

 Connector Type

Plug
Contact Type

Male Pin

 Orientation

Right Angle
Contact Termination Style

Solder

 Shield Termination

Solder
Mounting Type

Cable Mount

 Fastening Type

Threaded
Impedance

50 ohm

 Insulator Material

Teflon White
Shell Material

Copper Alloy

 Shell Finish

Gold Plated
Contact Material

Phosphor Bronze

 Contact Finish

Gold Plated
Frequency Range

0-6 GHz

 Insultation Resistance

5000MΩ Min
Mating Durability

≥ 500 Cycles

 Working Voltage

500 V rms
VSWR

1.5MAX

 Temperature Range

-55°C to +155°C
RF Series

SSMA Type
Connector Type

Plug
Contact Type

Male Pin
Orientation

Right Angle
Contact Termination Style

Solder
Shield Termination

Solder
Mounting Type

Cable Mount
Fastening Type

Threaded
Impedance

50 ohm
Insulator Material

Teflon White
Shell Material

Copper Alloy
Shell Finish

Gold Plated
Contact Material

Phosphor Bronze
Contact Finish

Gold Plated
Frequency Range

0-6 GHz
Insultation Resistance

5000MΩ Min
Mating Durability

≥ 500 Cycles
Working Voltage

500 V rms
VSWR

1.5MAX
Temperature Range

-55°C to +155°C
