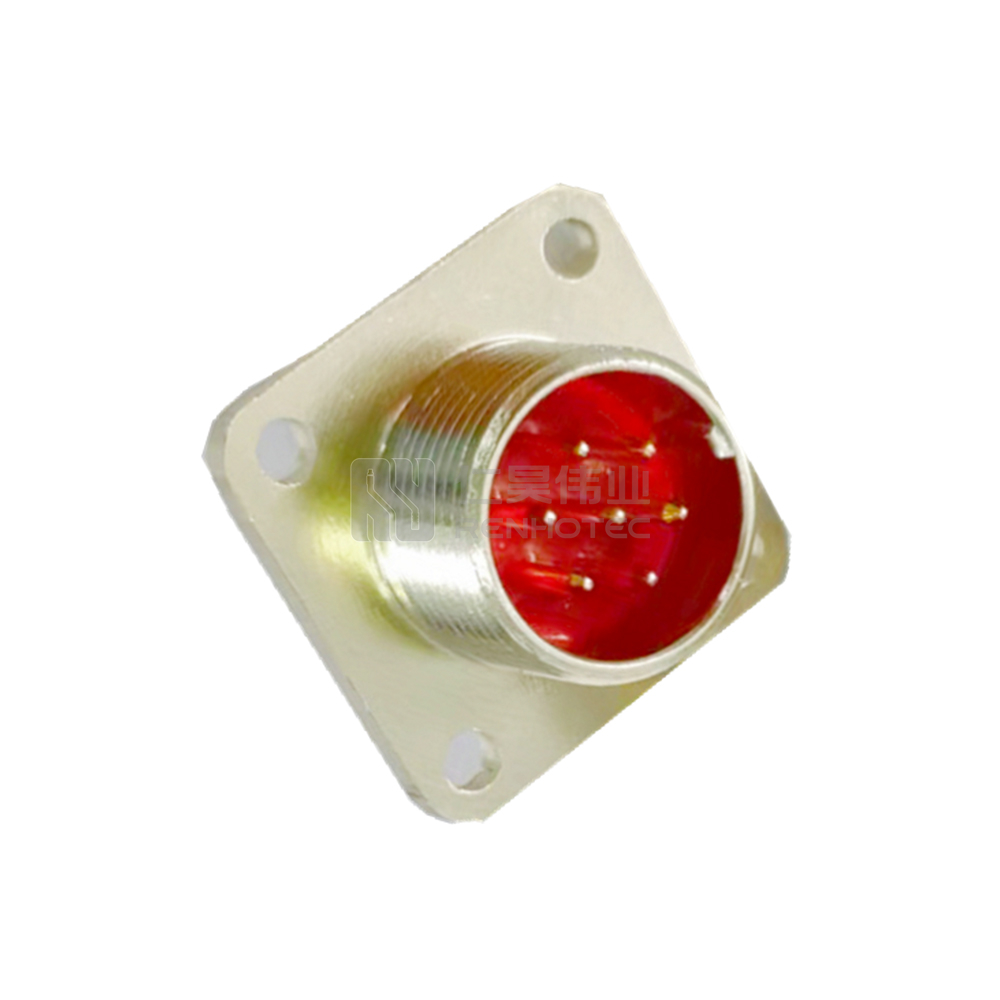

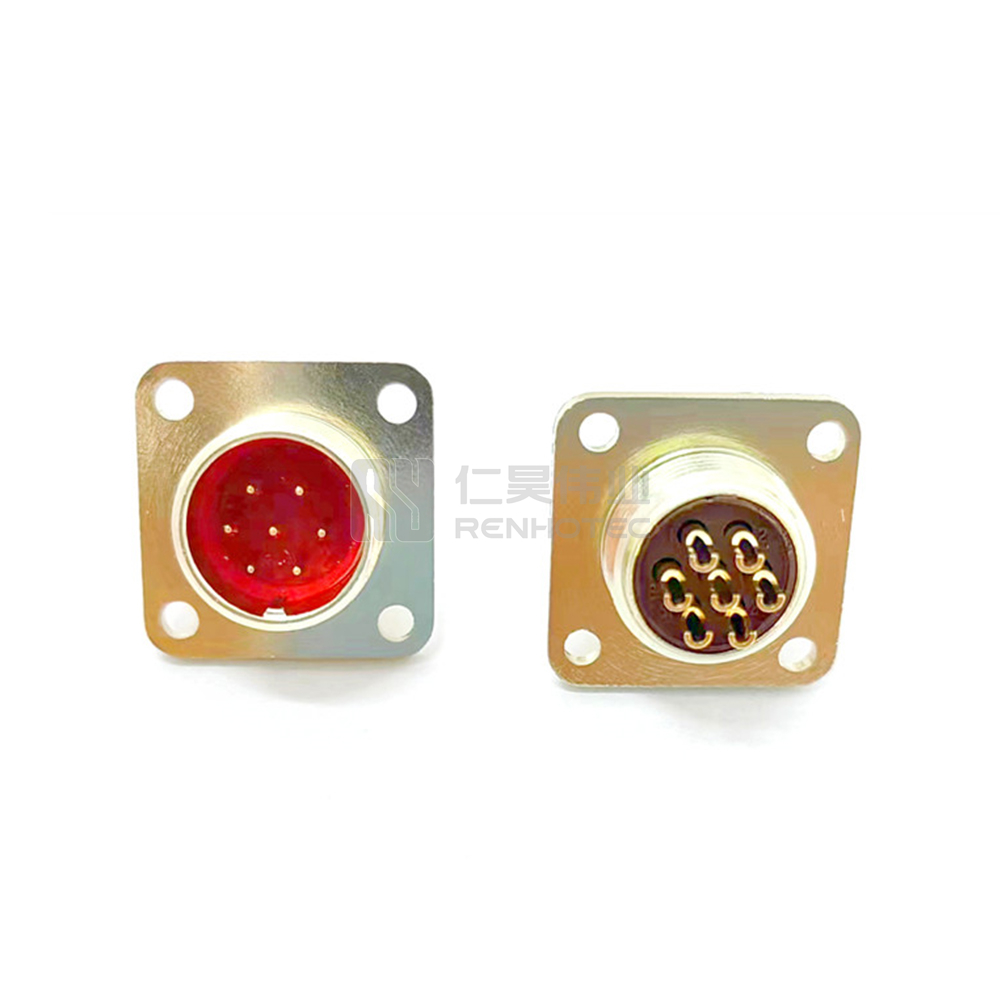

Threaded PC7ZJ 7 Pin Male Flange Socket Solder Cups

  • High Reliability: With metal housing and sealed structure, it can provide reliable connection and protection in harsh working environment.
  • Waterproof and dustproof: the connector has IP66 level waterproof and dustproof performance, able to work in wet and dusty environment.
  • Corrosion resistance: The connector’s shell is made of corrosion-resistant material, which can resist the erosion of chemicals and corrosive gases.
  • Multiple sizes and pin counts: The connectors offer a wide range of sizes and pin counts, suitable for different application scenarios and needs.

PC Series Russia Circular Connector

PC series small circular electrical connectors are small in size, with metal aluminum shell, light in weight, threaded connection, reliable electrical connection and easy to use. Currently there are 4, 7, 10, 19.32, 50 cores, which can interchanged with Russian PC-4, 7, 10, 19, 32, 50 core products. Widely used in electrical circuit connection on radio and electrical equipments and instruments. There are two installation methods: flange type and cable type..

Product Number

Product Specification

Applications

  • Railroad Equipment
  • Outdoor LED Lights
  • Industrial Machinery
  • Generator
  • Automotive Manufacturing
  • Sensors
  • Intelligent Manufacturing
  • Construction Equipment
  • Excavators

Product Specification

Connector Type

Receptacle
Orientation

Straight
Contact Type

Male Pin
Number of Positions

7 Pin
Fastening Type

Threaded
Mounting Type

Panel Mount
Mounting Feature

Flange
Contact Termination Style

Solder Cup
Shell Material

Aluminum Alloy
Shell Finish

Gold Oxide
Insulator Material

PBT
Contact Material

Copper
Contact Finish

Gold Plated
Color

Golden Yellow/Light Yellow/Yellow Green
Ingress Protection

IP66
Rated Current

5A
Rated Voltage

200V
Operating Temperature

-40°C～+105°C
Connector Type

Receptacle

 Orientation

Straight
Contact Type

Male Pin

 Number of Positions

7 Pin
Fastening Type

Threaded

 Mounting Type

Panel Mount
Mounting Feature

Flange

 Contact Termination Style

Solder Cup
Shell Material

Aluminum Alloy

 Shell Finish

Gold Oxide
Insulator Material

PBT

 Contact Material

Copper
Contact Finish

Gold Plated

 Color

Golden Yellow/Light Yellow/Yellow Green
Ingress Protection

IP66

 Rated Current

5A
Rated Voltage

200V

 Operating Temperature

-40°C～+105°C

Specifications

Wire Gauge

22～28AWG
Wire Gauge

22～28AWG
Connector Type

Receptacle
Orientation

Straight
Contact Type

Male Pin
Number of Positions

7 Pin
Fastening Type

Threaded
Mounting Type

Panel Mount
Mounting Feature

Flange
Contact Termination Style

Solder Cup
Wire Gauge

22～28AWG
Shell Material

Aluminum Alloy
Shell Finish

Gold Oxide
Insulator Material

PBT
Contact Material

Copper
Contact Finish

Gold Plated
Color

Golden Yellow/Light Yellow/Yellow Green
Ingress Protection

IP66
Rated Current

5A
Rated Voltage

200V
Operating Temperature

-40°C～+105°C
