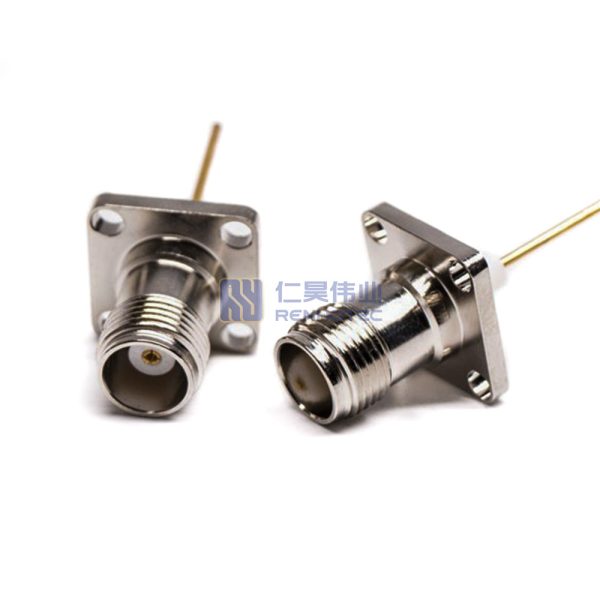

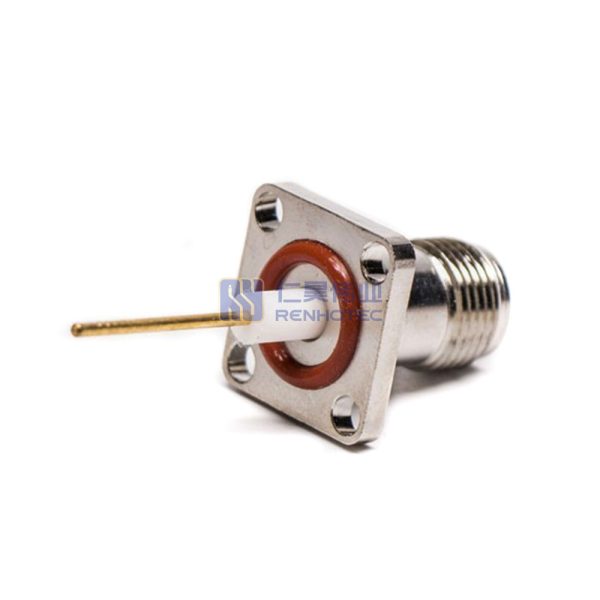

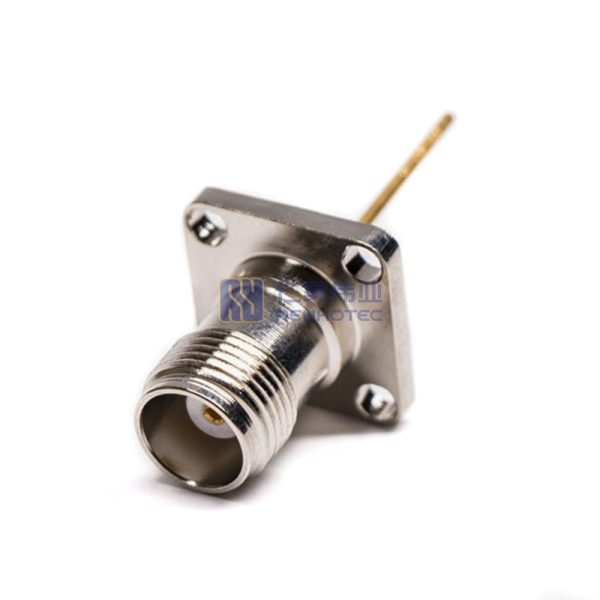

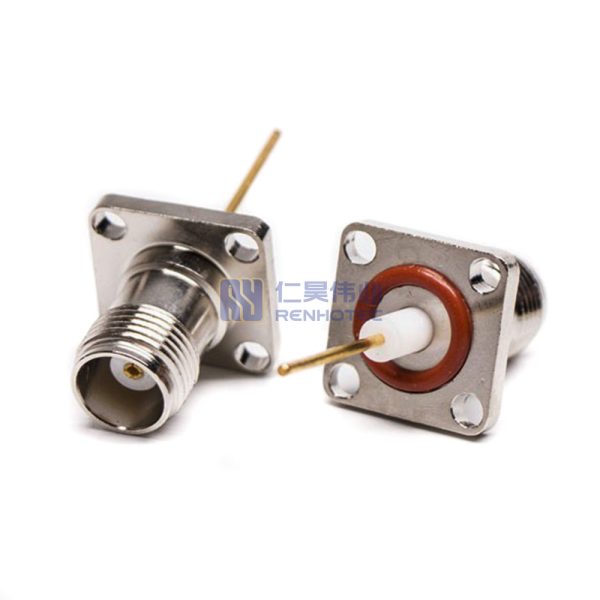

TNC Connector Solder Panel Mount 50ohm – RHT-615-0412

Effortlessly secure your TNC connectors with this solder panel mount designed for 50ohm applications. The reliable RHT-615-0412 ensures a stable connection for your electronic projects.

The TNC connector series is a miniature, threaded weatherproof series with a constant 50 Ω impedance and a frequency range of DC to 11 GHz. The TNC series shares its contact design with the BNC series, utilizing a threaded coupling nut for secure mating and higher frequency performance than the BNC.

TNC connectors are produced with standard and reverse polarity. Reverse polarity is a keying system accomplished with a reverse interface, and ensures that reverse polarity interface connectors do not mate with standard interface connectors. Renhotec accomplishes this by inserting female contacts into plugs and male contacts into jacks to ensure quality. Other manufacturers may use reverse threading to accomplish reverse polarity keying.

As a result of their versatility and durability, TNC connectors are ideal for a variety applications.

Threaded coupling interface ensures connector with not de-couple in vibration-intense applications

Durable construction,

High Performance

Expansive product line includes designs for many common cable types

Complete Variety

TNC Male

TNC Female

RP-TNC Male

RP-TNC Female

Crimp Type

Crimp Type

Solder Type

Solder Cup

Twist On

Through Hole

R/A Through Hole

Surfance Mount

Flange Type

Bulkhead Type

Product Application

High performance TNC coaxial connectors with thread coupling for vibration environment, Mainly used for Cellular Mobile Phones, Aviation Controls, Telemetry, and GPS, Wireless Base Station, Microwave Components, Radar, Networks, Antenna Mounts, Machine to machine communications, Security Devices, Instrumentation, etc…

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

After sales system

Actively follow up andpromptly address anyissues

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

RF Series

TNC Type
Connector Type

Jack
Orientation

Straight
Contact Type

Female Pin
Contact Termination Style

Solder
Shield Termination

Solder
Mounting Type

Panel Mount
Mounting Feature

4 Hole Flange
Fastening Type

Threaded
Number of Ports

1
Impedance

50 ohm
Frequency - Max

6GHz
Shell Material

Copper Alloy
Shell Finish

Nickel Plated
Insulator Material

Teflon White
Contact Material

Brass
Contact Finish

Gold Plated
Insultation Resistance

500MΩ Min
Center Contact Resistance

1.5 MΩ Max
Outer Contact Resistance

0.2 MΩ Max
Temperature Range

-65°C to +165°C
Mating Durability

≥ 500 Cycles
RF Series

TNC Type

 Connector Type

Jack
Orientation

Straight

 Contact Type

Female Pin
Contact Termination Style

Solder

 Shield Termination

Solder
Mounting Type

Panel Mount

 Mounting Feature

4 Hole Flange
Fastening Type

Threaded

 Number of Ports

1
Impedance

50 ohm

 Frequency - Max

6GHz
Shell Material

Copper Alloy

 Shell Finish

Nickel Plated
Insulator Material

Teflon White

 Contact Material

Brass
Contact Finish

Gold Plated

 Insultation Resistance

500MΩ Min
Center Contact Resistance

1.5 MΩ Max

 Outer Contact Resistance

0.2 MΩ Max
Temperature Range

-65°C to +165°C

 Mating Durability

≥ 500 Cycles
RF Series

TNC Type
Connector Type

Jack
Orientation

Straight
Contact Type

Female Pin
Contact Termination Style

Solder
Shield Termination

Solder
Mounting Type

Panel Mount
Mounting Feature

4 Hole Flange
Fastening Type

Threaded
Number of Ports

1
Impedance

50 ohm
Frequency - Max

6GHz
Shell Material

Copper Alloy
Shell Finish

Nickel Plated
Insulator Material

Teflon White
Contact Material

Brass
Contact Finish

Gold Plated
Insultation Resistance

500MΩ Min
Center Contact Resistance

1.5 MΩ Max
Outer Contact Resistance

0.2 MΩ Max
Temperature Range

-65°C to +165°C
Mating Durability

≥ 500 Cycles
Drawing for TNC Connector Solder Panel Mount 50ohmDownload
