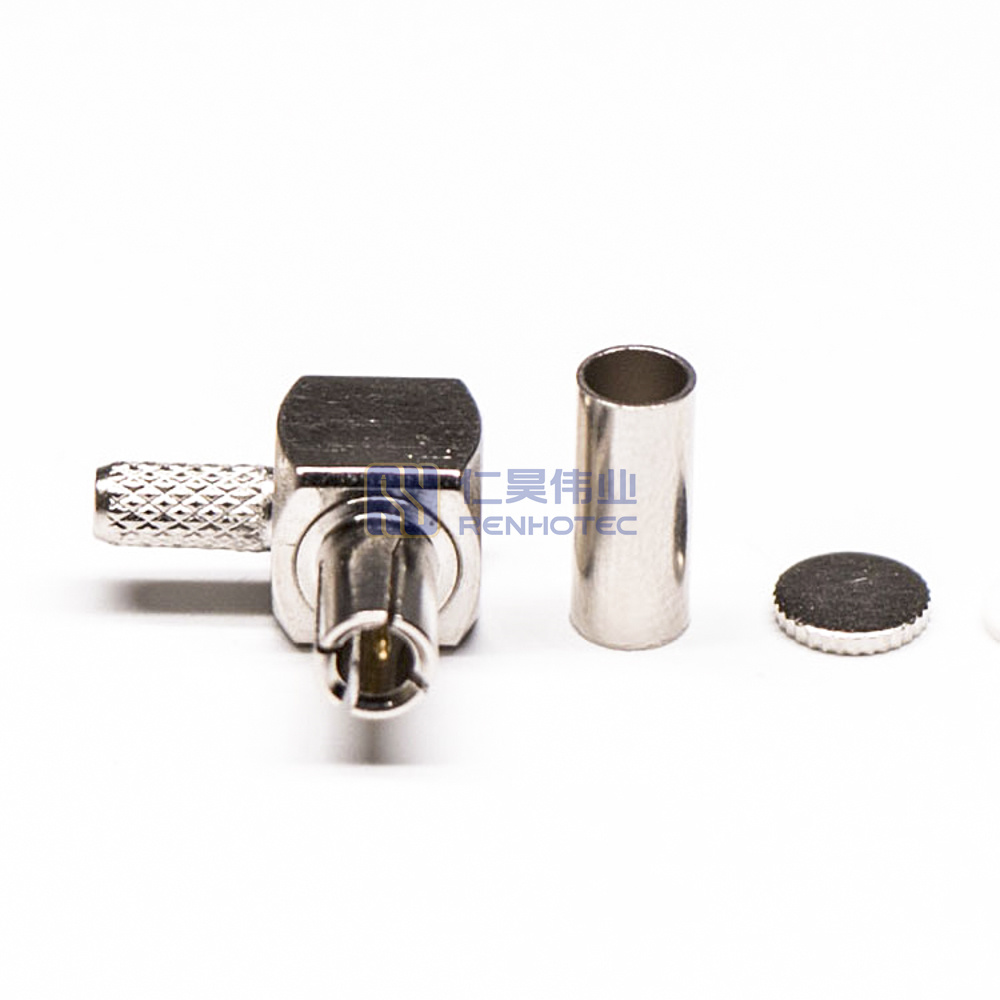

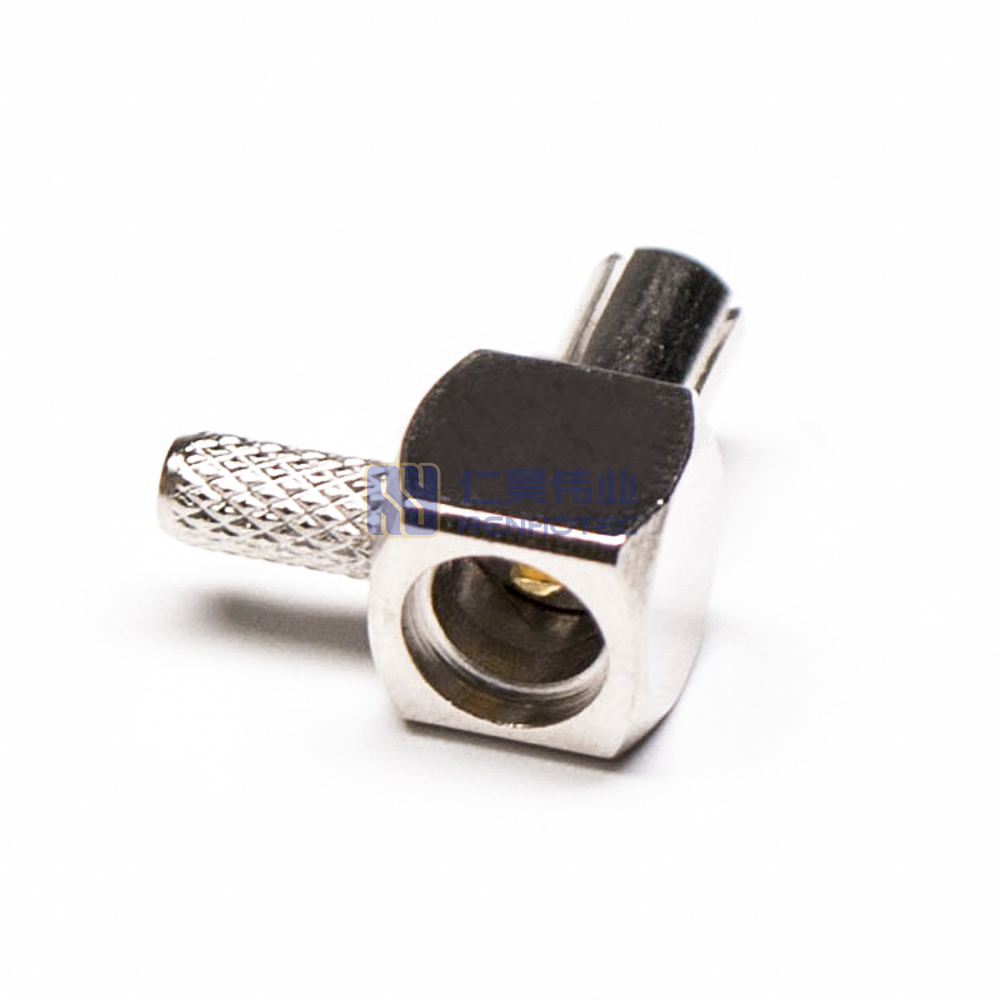

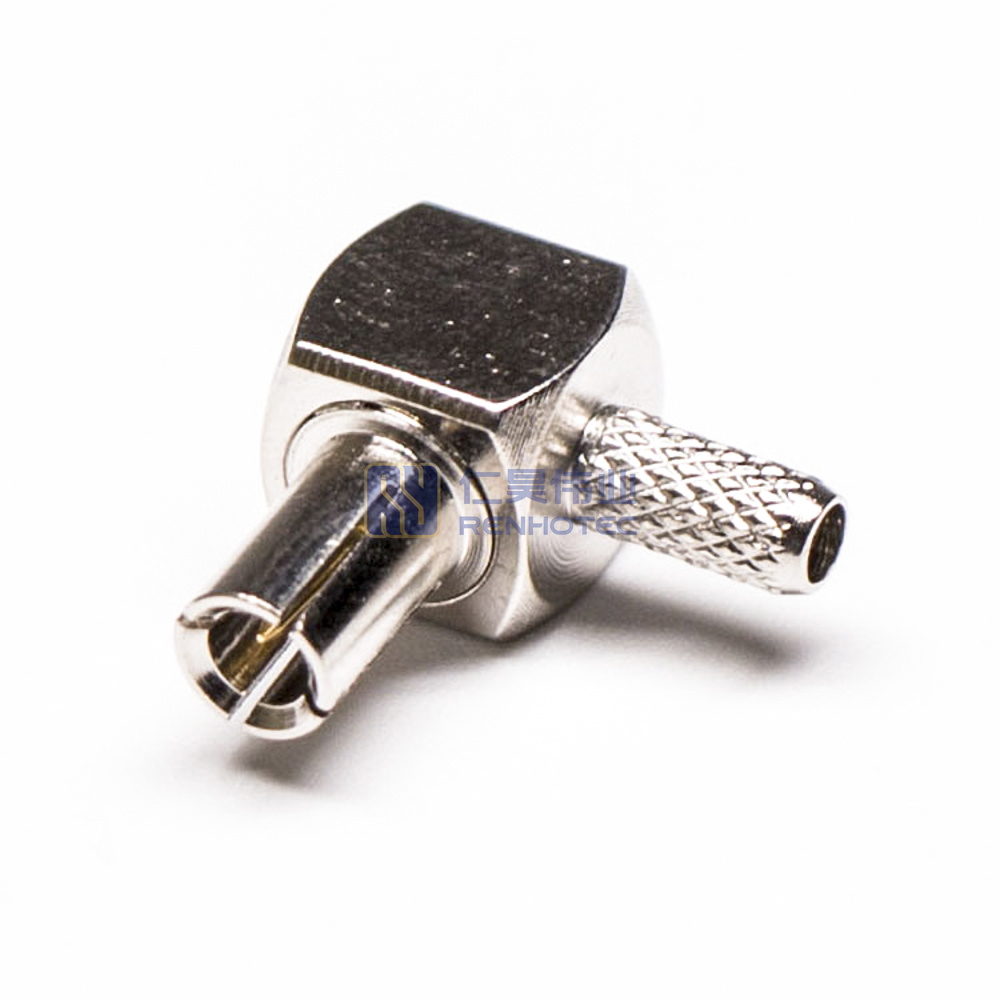

TS9 Connector Right AnglePlug Crimp Type for RG316 Coaxial Cable – DS901MCS0002
- Can be used with RG188/316/174
- Crimp type connector
- Support the connection of an external antenna
- Attached to the PCB by a Surface Mount or End-Launch mounting
TS-9 (or TS9) is an uncommon RF coaxial connector found in cellular devices such as 3G and 4G mobile broadband modems to support the connection of an external antenna. The design and production of the TS-9 connector do not follow any defined international standard, nor does the design follow a proprietary specification.
The TS-9 Female connector comprises a very simple circular brass housing with an outer diameter of 3.5 mm. The connector is typically attached to the PCB by a Surface Mount or End-Launch mounting. The connector is most popularly found on wireless broadband devices manufactured by Netgear and Sierra Wireless.
TS-9 Male connectors have no controlled manufacture. However, they are identified by a 3.5 mm inner diameter and 3.8 mm outer diameter. The male connector is mostly found on interconnecting coaxial cables, although occasionally on small direct connecting external antennas.
Application Scenarios
Product Specification
RF Series | TS9 Type |
||
---|---|---|---|
Connector Type | Plug |
||
Orientation | Right Angle |
||
Contact Type | Male Pin |
||
Contact Termination Style | Solder Cup |
||
Shield Termination | Crimp |
||
Mounting Type | Cable Mount |
||
Fastening Type | Snap On |
||
Cable Type | RG316 |
||
Number of Ports | 1 |
||
Impedance | 50 ohm |
||
Frequency - Max | 4GHz |
||
Shell Material | Copper Alloy |
||
Shell Finish | Nickel Plated |
||
Insulator Material | PTFE |
||
Contact Material | Brass |
||
Contact Finish | Gold Plated |
||
RF Series | TS9 Type |
Connector Type | Plug |
Orientation | Right Angle |
Contact Type | Male Pin |
Contact Termination Style | Solder Cup |
Shield Termination | Crimp |
Mounting Type | Cable Mount |
Fastening Type | Snap On |
Cable Type | RG316 |
Number of Ports | 1 |
Impedance | 50 ohm |
Frequency - Max | 4GHz |
Shell Material | Copper Alloy |
Shell Finish | Nickel Plated |
Insulator Material | PTFE |
Contact Material | Brass |
Contact Finish | Gold Plated |
RF Series | TS9 Type |
---|---|
Connector Type | Plug |
Orientation | Right Angle |
Contact Type | Male Pin |
Contact Termination Style | Solder Cup |
Shield Termination | Crimp |
Mounting Type | Cable Mount |
Fastening Type | Snap On |
Cable Type | RG316 |
Number of Ports | 1 |
Impedance | 50 ohm |
Frequency - Max | 4GHz |
Shell Material | Copper Alloy |
Shell Finish | Nickel Plated |
Insulator Material | PTFE |
Contact Material | Brass |
Contact Finish | Gold Plated |
