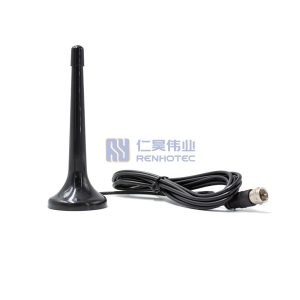

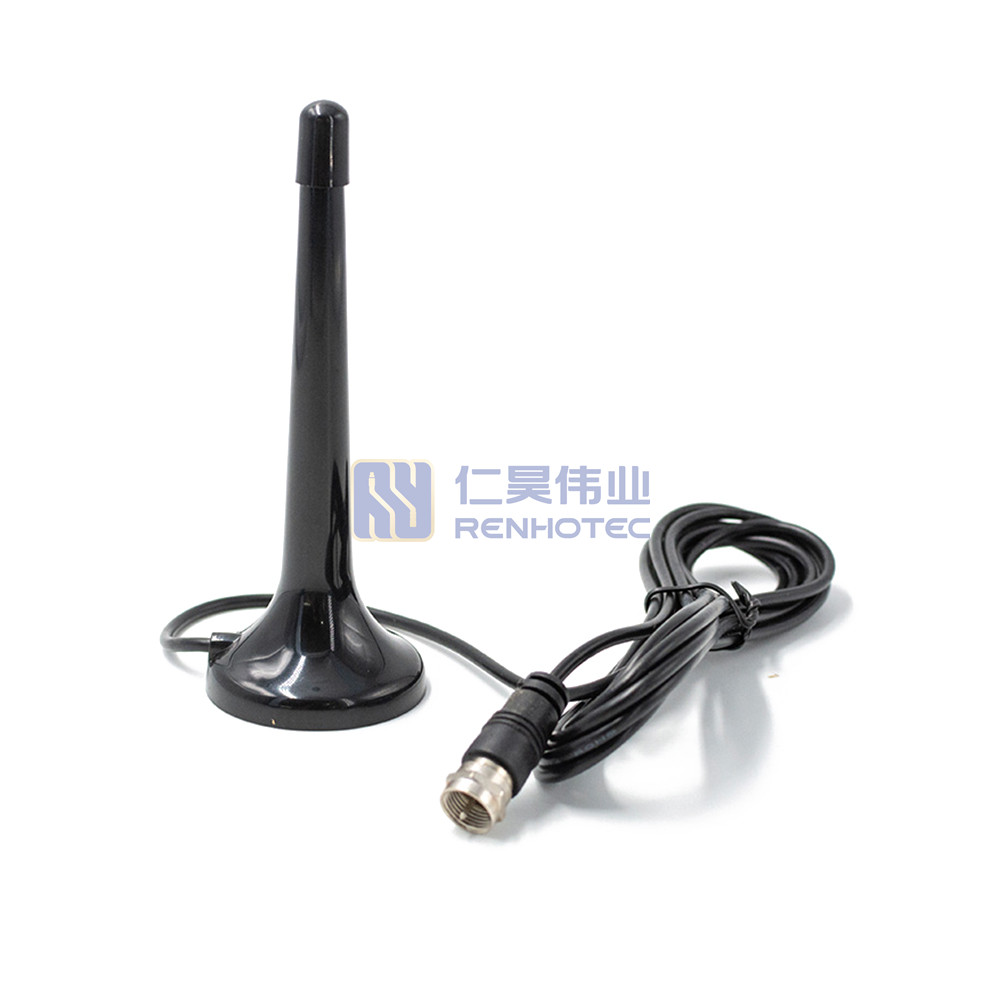

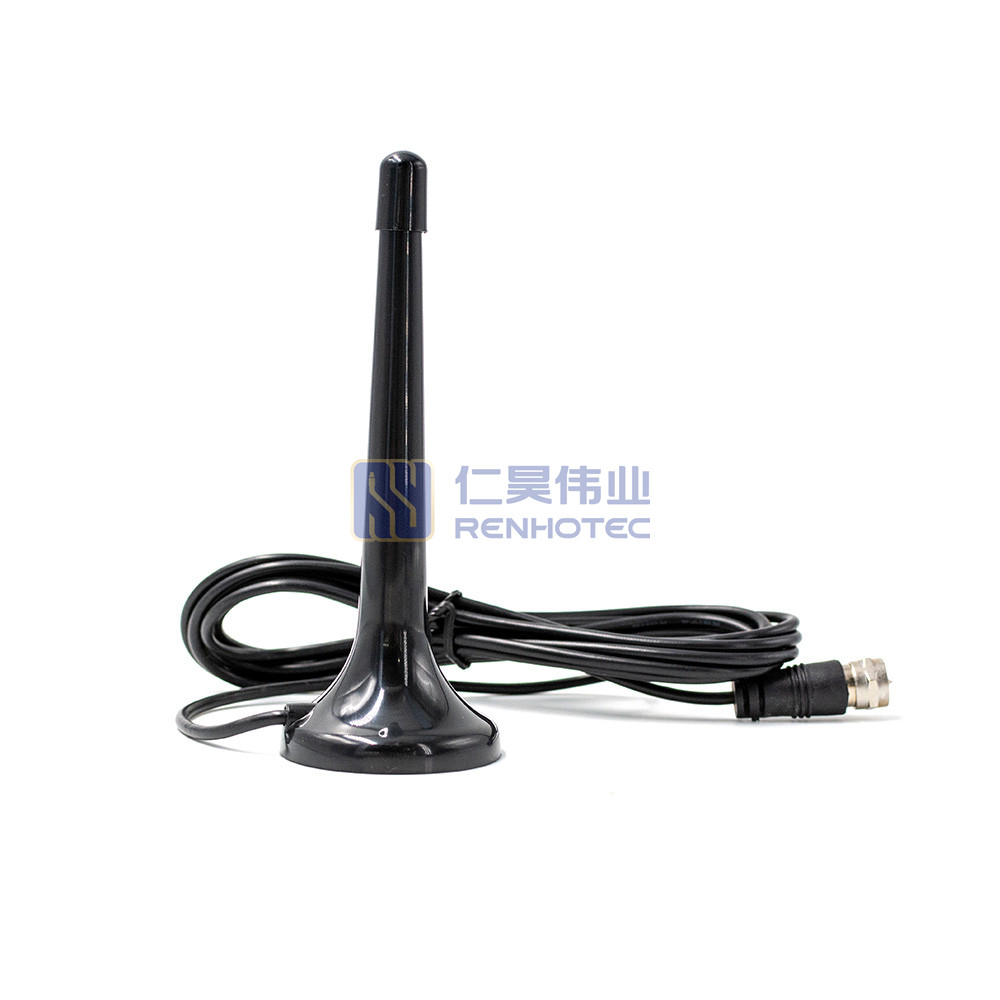

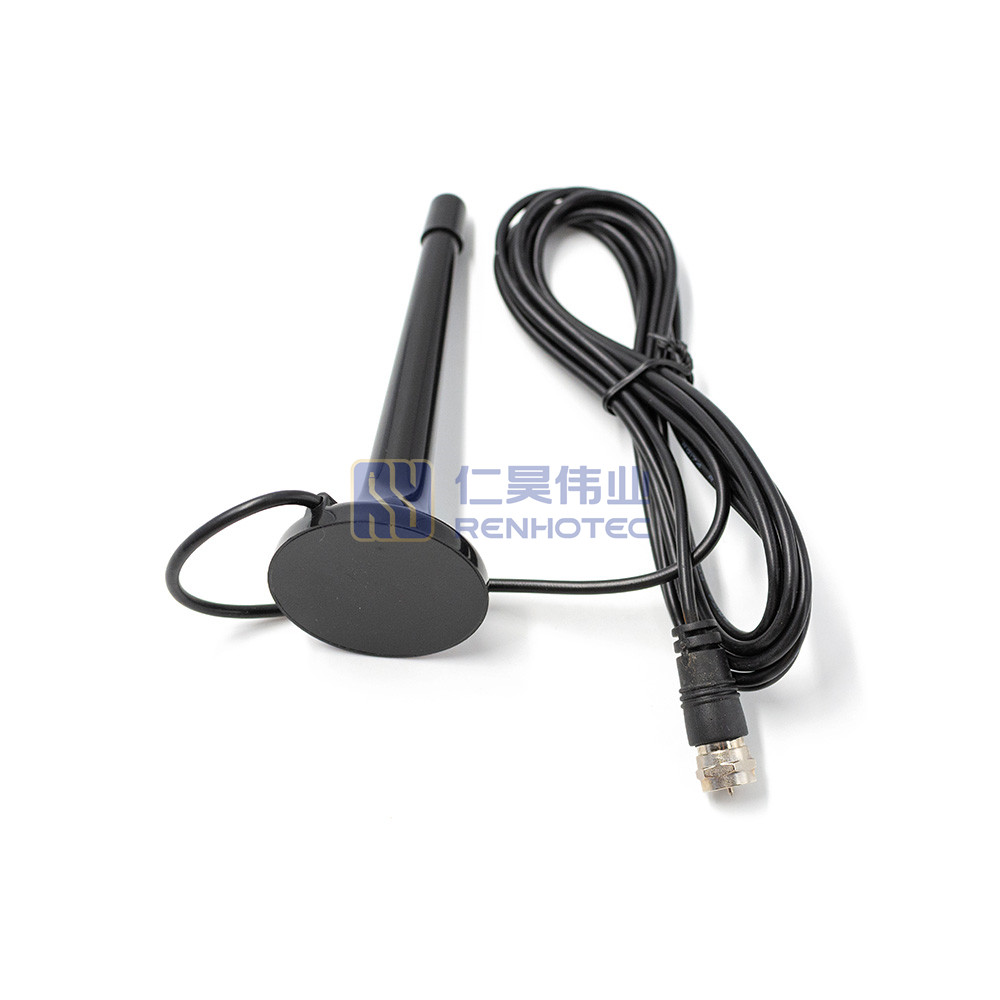

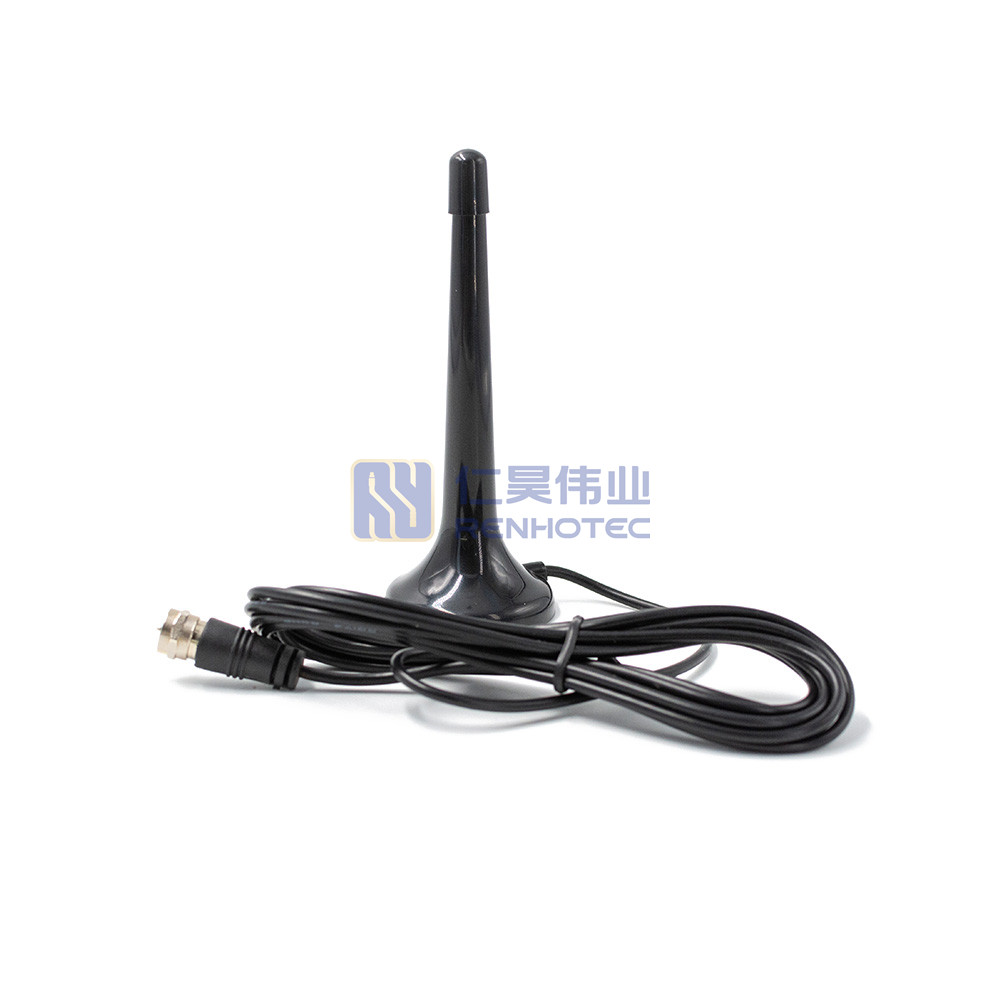

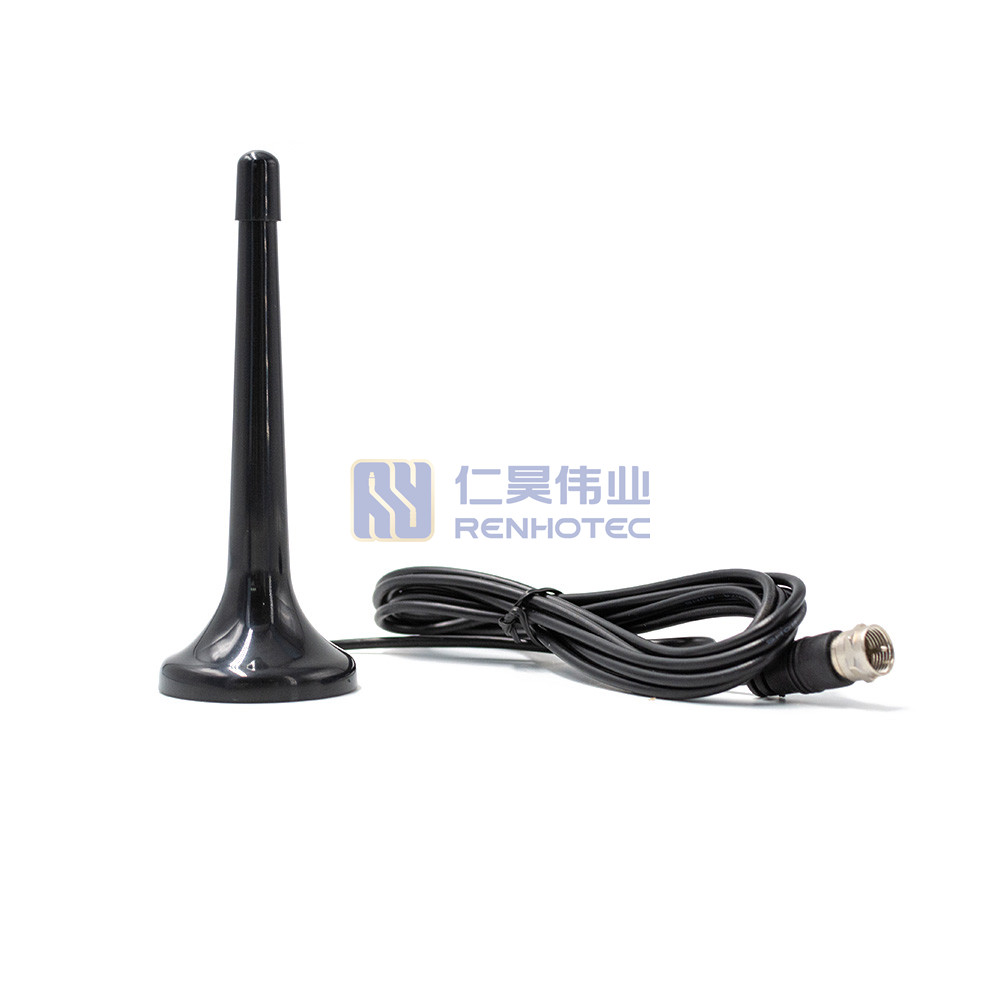

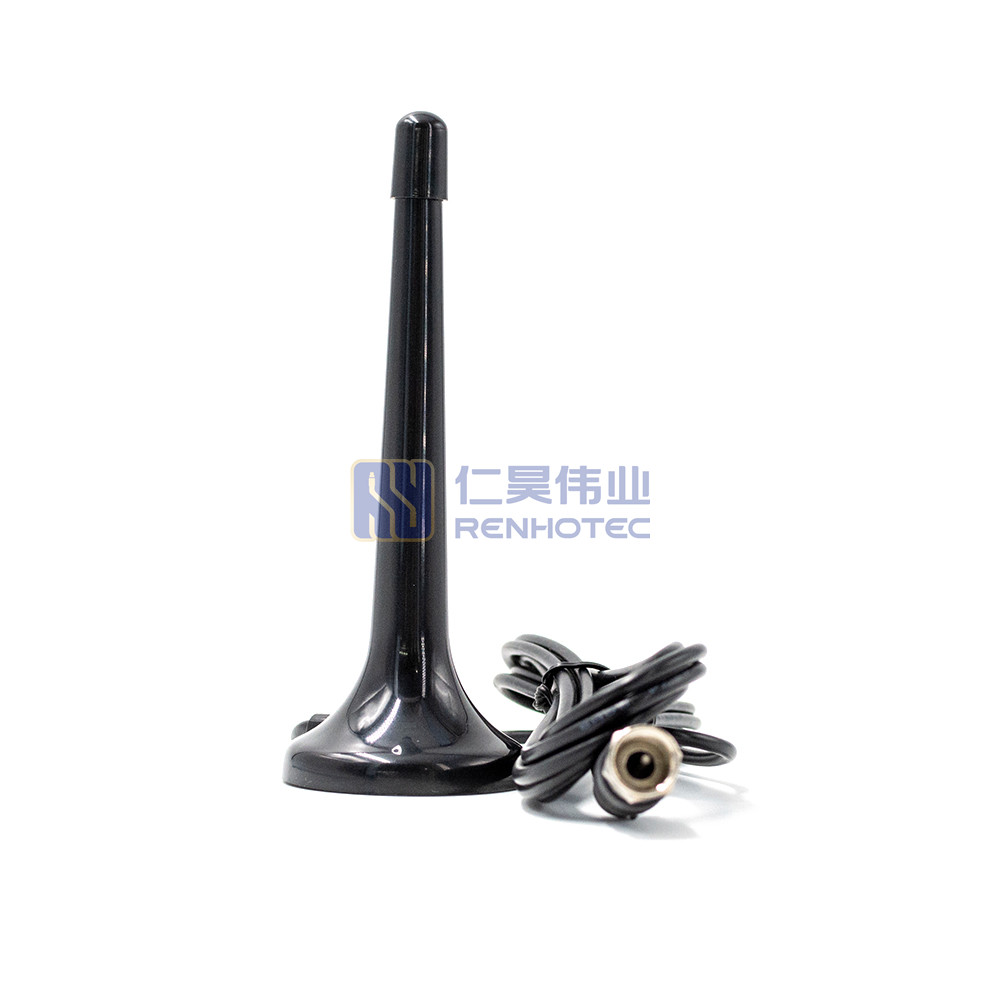

VHF 170-230MHz / UHF 470-862MHz High Gain Indoor Signal HD Digital TV Antenna

  • Supports both VHF 170-230MHz and UHF 470-862MHz frequencies for comprehensive HD digital TV reception across a wide range of channels
  • High-gain design improves signal strength, ensuring clear, crisp HD reception even in areas with weak signal coverage
  • Compact, space-saving design makes it ideal for indoor use in apartments, homes, and offices, offering optimal reception without taking up space
  • Easy to install with tool-free setup, compatible with most modern digital TVs, set-top boxes, and receivers for hassle-free connection
  • Durable construction with high-quality materials ensures reliable, long-lasting performance for consistent signal quality

TV Antenna is an antenna designed to receive terrestrial television over-the-air signals, which are transmitted between 170-230MHz in the VHF band, and between 470-862MHz in the UHF band, depending on the country. Television antennas are manufactured in two different types: “indoor” antennas that can be located on top of or next to the television, and “outdoor” antennas that are mounted on masts on the roof of the owner’s house.

TV antennae

Product Feature

1.Up to 100+ miles of receiving range:

Our indoor TV antennas can receive signals up to 100+ miles, and the advanced signal booster optimizes signal transmission protection against interference with other signals, which ensures you get more channels even when you’re far from the broadcast tower. Supported formats: 720p, 1080pi, 1080p/ATSC.

2.360° Reception HDTV Channels:

Our upgraded indoor and outdoor TV antennas can instantly get you out of expensive TV bills and enjoy hundreds of HD TV programs, including ABC, CBS, NBC, PBS, Fox, Univision, and more..

3.Multiple Options:

Our smart TV antennas adopt the new generation technology, providing two types of amplifiers, built-in and external, which can meet the diverse needs of different products.

4.Portable design for easy installation:

Comes with 36ft coaxial cable, meaning you can set it up behind your TV, on a wall or in a window, and we make sure you can install it in minutes and get plenty of channels in your living room, bedroom, basement and RV and more. “

Installation Guide

Step 1:
Put the antenna on the table/ window or door.

Step 2:
Connect the antenna and booster in series to the TV or set-top box antenna port.

Step 3:
Press the TV signal source button, select DTMB/digital TV/terrestrial digital, and enter the interface to search for channels.

Applications

Home TV Reception: The most common application is to provide households with free digital TV signal reception.

Public Places: In hotels, libraries, and community centers, antennas can be used to centrally receive TV signals for shared use by multiple users.

Mobile Installation: Used in vehicles, boats, or other mobile devices to receive TV signals on the go.

Special Occasions: Convenient for temporary TV signal reception during outdoor activities, camping, etc.

Product Specification

Frequency Range

VHF 170-230MHz / UHF 470-862MHz

VSWR

≤2.0

Impedance

75Ω

Cable length

1.5C-2V/2.5C-2V

Connector

F Male

Operating Temperature

-20°C~+85°C

Frequency Range

VHF 170-230MHz / UHF 470-862MHz

VSWR

≤2.0

Impedance

75Ω

Cable length

1.5C-2V/2.5C-2V

Connector

F Male

Operating Temperature

-20°C~+85°C

Gain

5dB or 25dB(With Amplifier)

Power Supply

USB port(5V/50mA)

Polarization

Horizontal / Vertical

Working Humidity

20-85%

Product Size

42*42*120mm

Gain

5dB or 25dB(With Amplifier)

Power Supply

USB port(5V/50mA)

Polarization

Horizontal / Vertical

Working Humidity

20-85%

Product Size

42*42*120mm

Frequency Range

VHF 170-230MHz / UHF 470-862MHz

Gain

5dB or 25dB(With Amplifier)

VSWR

≤2.0

Impedance

75Ω

Cable length

1.5C-2V/2.5C-2V

Connector

F Male

Power Supply

USB port(5V/50mA)

Polarization

Horizontal / Vertical

Operating Temperature

-20°C~+85°C

Working Humidity

20-85%

Product Size

42*42*120mm
